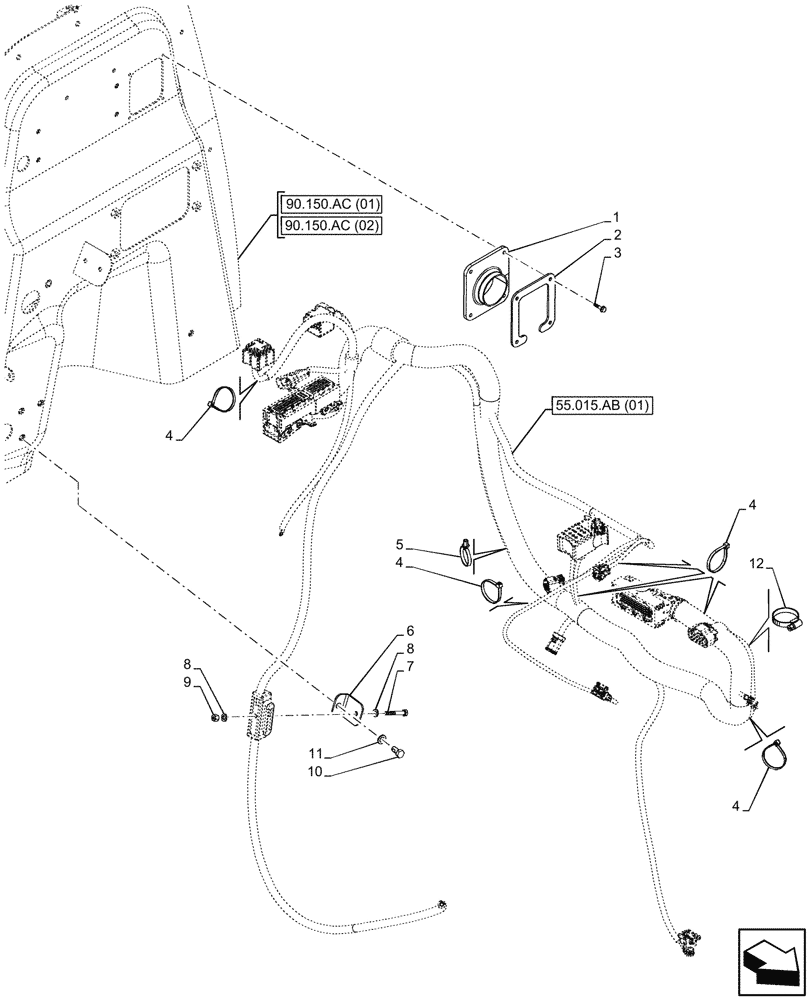

Запчасти Case 580N EP (55.015.AB[02]) - ENGINE, WIRE HARNESS (55) - ELECTRICAL SYSTEMS

1

84498262

GROMMET,80mm L, 90mm L, 30mm L

1шт.

2

47735085

MOUNTING PLATE

1шт.

3

281-54512

SCREW,Hex Wshr Hd, #10 - 24 x 3/4"

4шт.

4

L11541

CABLE TIE,203.2mm L, Nylon

6шт.

5

87668737

CABLE TIE,203.2mm L, Nylon, Black

1шт.

6

47762219

BRACKET

1шт.

7

814-6040

BOLT,Hex, M6 x 1 x 40mm, Cl 8.8

1шт.

8

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

2шт.

9

832-10406

NUT,M6 x 1, Cl 8

1шт.

10

806-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9

1шт.

11

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

12

84259663

CABLE TIE,228.6mm L, Nylon, Black

1шт.
