(50.100.AF) - VAR - 747853, 747854, 747855 - CAB, HEATER, CORE

Запчасти Case 580N EP (50.100.AF) - VAR - 747853, 747854, 747855 - CAB, HEATER, CORE (50) - CAB CLIMATE CONTROL

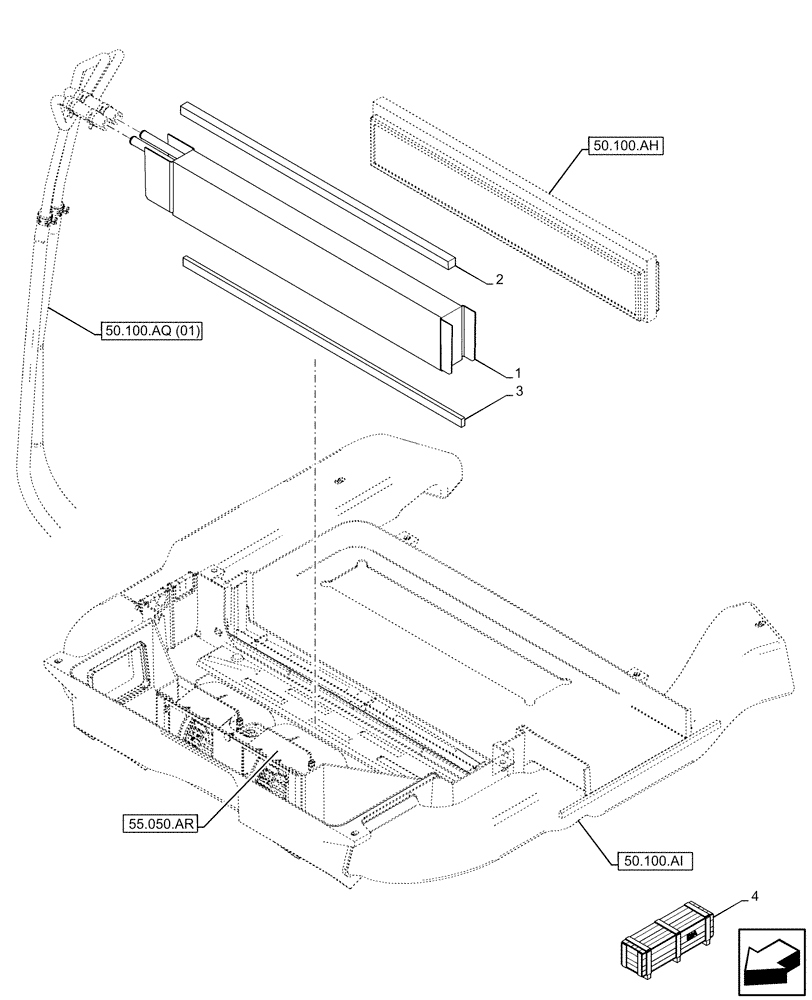

Схема запчастей Case 580N EP - (50.100.AF) - VAR - 747853, 747854, 747855 - CAB, HEATER, CORE (50) - CAB CLIMATE CONTROL
50.100.aq (01)
2
3
4
1
55.050.ar
50.100.ai
50.100.ah
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

360262A2

CORE

Heater

1шт.

2

406287A1

SEALING STRIP,19mm W x 736mm L x 19mm Thk

1шт.

3

1987096C1

PLATE

1шт.

4

47699070

CONSTRUCTION DIA

Air Conditioning HPCR, Incl 1 - 3

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
