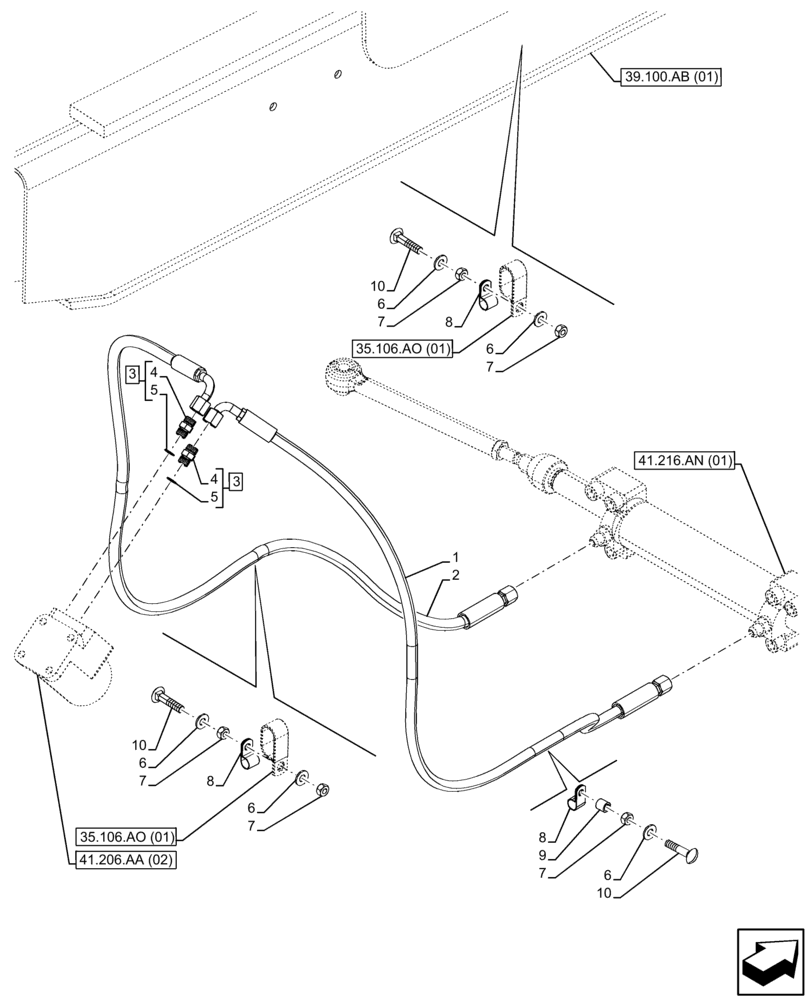

Запчасти Case 580N EP (41.216.AV) - STEERING CYLINDER HYD. LINE (41) - STEERING

1

47604965

HYDRAULIC HOSE,10mm ID x 1535mm L

10mm ID x 1535mm L, RH Steering

1шт.

2

47604954

HYDRAULIC HOSE,10mm ID x 1600mm L

10mm ID x 1600mm L, LH Steering

1шт.

3

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

ASSY, Incl 4 (Qty 1), 5 (Qty 1)

2шт.

4

NSS

NOT SOLD SEPARAT

Connector, Incl in 3

2шт.

5

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

6

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

3шт.

7

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.

8

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

2шт.

9

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

1шт.

10

711-10050

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 50mm, Cl 8.8

2шт.
