(41.206.AJ[03]) - VAR - 423011 - POWER STEERING LINE

Запчасти Case 580N EP (41.206.AJ[03]) - VAR - 423011 - POWER STEERING LINE (41) - STEERING

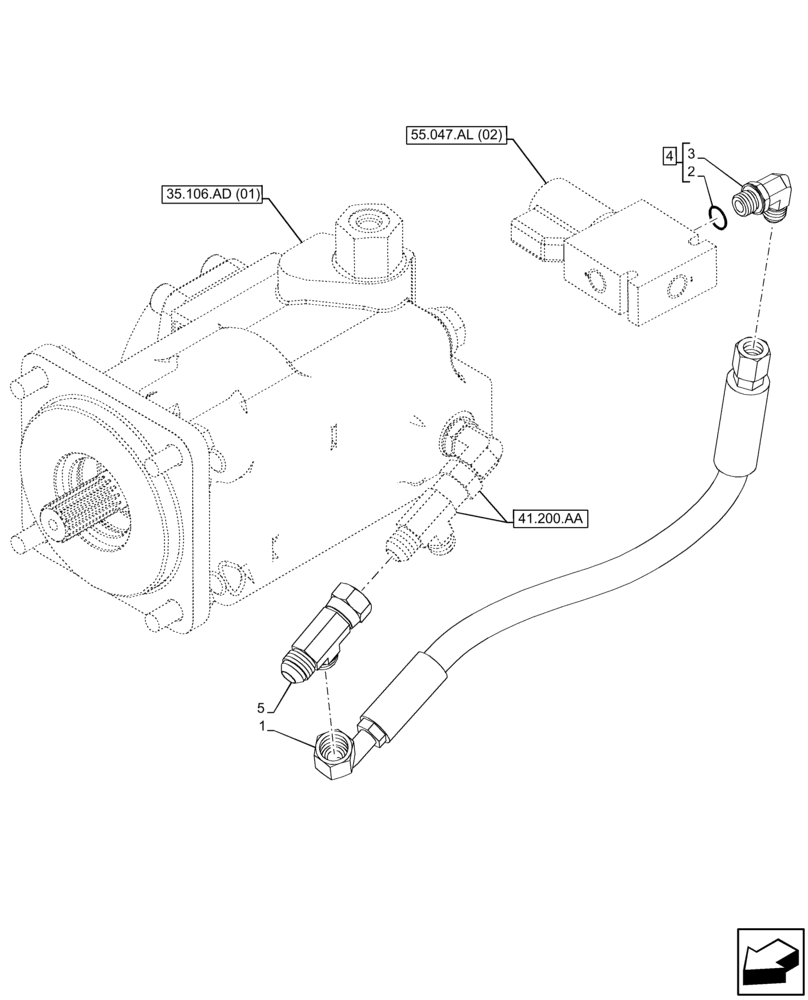

Схема запчастей Case 580N EP - (41.206.AJ[03]) - VAR - 423011 - POWER STEERING LINE (41) - STEERING
41.200.aa
2
4
3
5
1
35.106.ad (01)
55.047.al (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47607540

HYDRAULIC HOSE,10mm ID x 440mm L

10mm ID x 440mm L, Comfort Steer Solenoid to Oil Filter

1шт.

2

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 4

1шт.

3

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

4

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

ASSY, Incl 2, 3

1шт.

5

86511870

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

Выбрано товаров: 5
