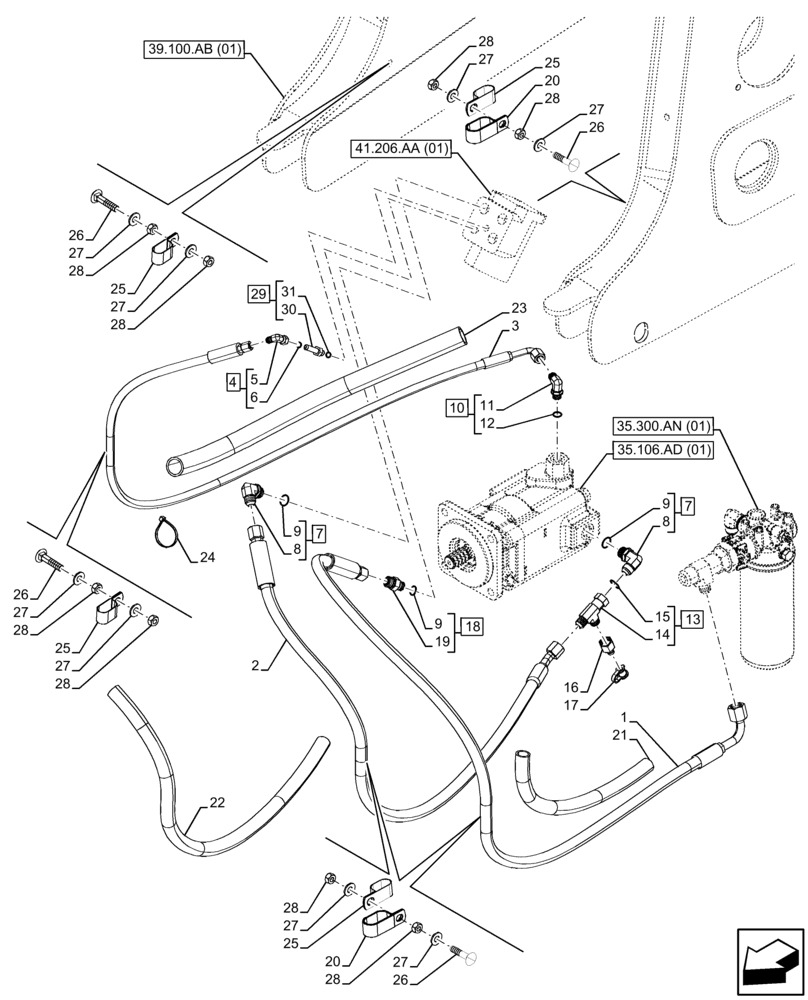

Запчасти Case 580N EP (41.200.AA) - STEERING LINE (41) - STEERING

1

47604924

HYDRAULIC HOSE,12.5mm ID x 1670mm L

12.5mm ID x 1670mm L, Steering Return

1шт.

2

47604938

HYDRAULIC HOSE,12.5mm ID x 1330mm L

12.5mm ID x 1330mm L, Steering Pressure

1шт.

3

47604947

HYDRAULIC HOSE,6.3mm ID x 1555mm L

6.3mm ID x 1555mm L, Steering Pilot

1шт.

4

86512933

90 ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

ASSY, Incl 5, 6

1шт.

5

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 4

1шт.

6

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

7

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

ASSY, Incl 8 (Qty 1), 9 (Qty 1)

2шт.

8

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 7

2шт.

9

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3шт.

10

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

ASSY, Incl 11, 12

1шт.

11

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 10

1шт.

12

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

13

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

ASSY, Incl 14, 15

1шт.

14

NSS

NOT SOLD SEPARAT

Tee, Incl in 13

1шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

16

192834A1

COUPLING

Diagnostic

1шт.

17

H434163

DUST CAP

1шт.

18

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

ASSY, Incl 9 (Qty 1), 19

1шт.

19

NSS

NOT SOLD SEPARAT

Connector, Incl in 18

1шт.

20

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

1шт.

21

191704A1

HOSE PROTECTION,19mm ID x 25mm OD x 460mm L

19mm ID x 25mm OD x 460mm L

1шт.

22

84327011

HOSE PROTECTION

19.1mm ID x 25.7mm OD x 1017mm L

1шт.

23

84329867

HOSE PROTECTION,26.87mm ID x 590mm L

1шт.

24

L11541

CABLE TIE,203.2mm L, Nylon

1шт.

25

L302731

CLAMP,19mm D Clamping Pipes

2шт.

26

711-10050

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 50mm, Cl 8.8

2шт.

27

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

4шт.

28

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

29

218-5027

HYD CONNECTOR,7/16" - 20 Male JIC x 7/16" - 20 Male ORB

ASSY, Incl 30, 31

1шт.

30

NSS

NOT SOLD SEPARAT

Connector, Incl in 29

1шт.

31

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.
