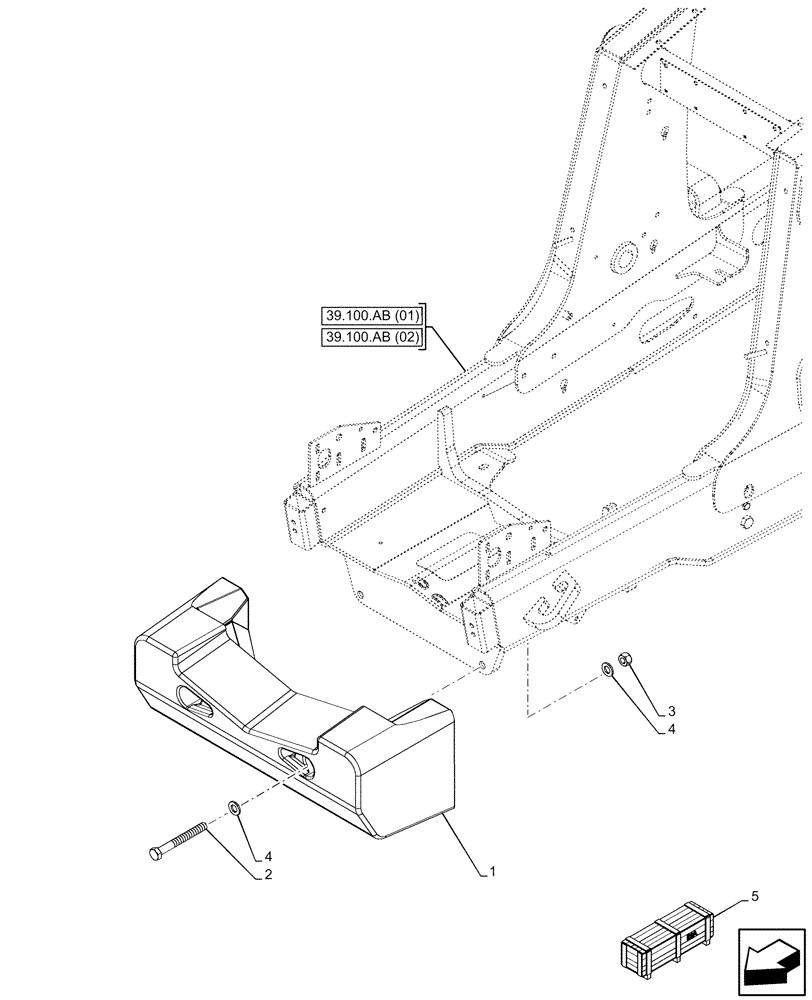

Запчасти Case 580N EP (39.140.AM[02]) - VAR - 423010, 423047 - COUNTERWEIGHT, 900 LBS, FRONT (39) - FRAMES AND BALLASTING

1

87425456

COUNTERWEIGHT,Front, 900 Lb

1шт.

2

827-20170

BOLT,Hex, M20 x 2.5 x 170mm, Cl 10.9

2шт.

3

829-1420

NUT,M20, Cl 10

2шт.

4

87655047

SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm Thk

4шт.

5

231923A1

CONSTRUCTION DIA

Front Counterweight, 900 Lb, Incl 1 - 4

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
