(39.140.AM[01]) - VAR - 747580 - COUNTERWEIGHT, 440 LBS, FRONT

Запчасти Case 580N EP (39.140.AM[01]) - VAR - 747580 - COUNTERWEIGHT, 440 LBS, FRONT (39) - FRAMES AND BALLASTING

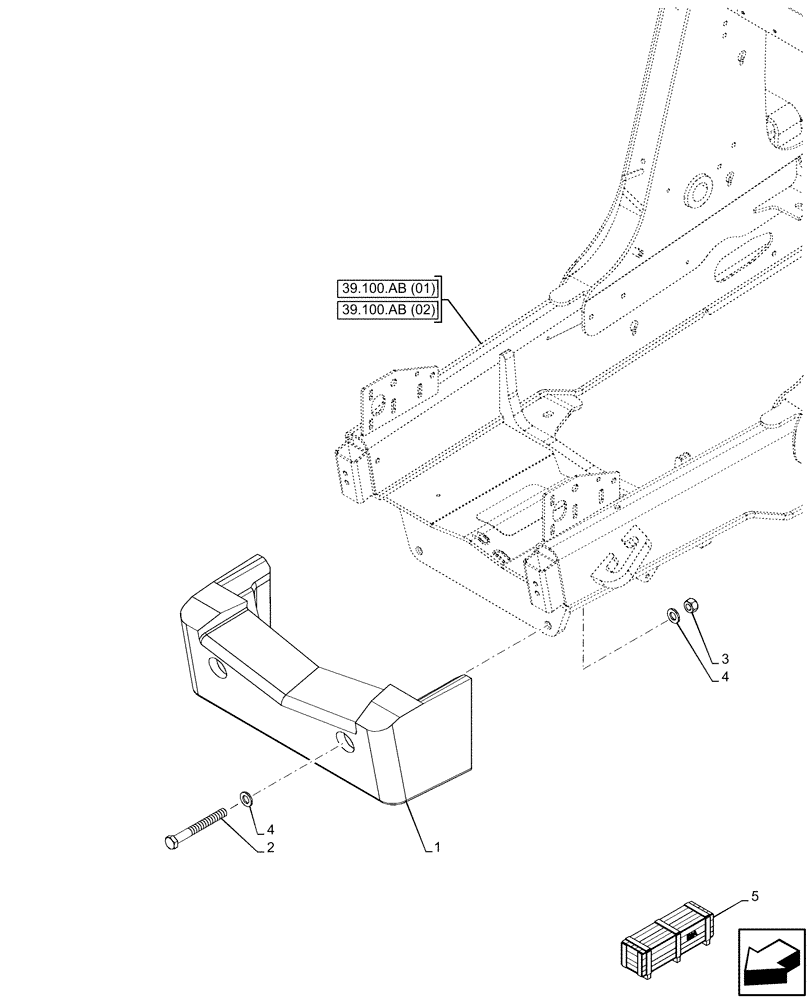

Схема запчастей Case 580N EP - (39.140.AM[01]) - VAR - 747580 - COUNTERWEIGHT, 440 LBS, FRONT (39) - FRAMES AND BALLASTING
3
1
2
4
5
4
39.100.ab (02)
39.100.ab (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

360867A1

COUNTERWEIGHT,Front, 440 Lb

1шт.

2

827-20170

BOLT,Hex, M20 x 2.5 x 170mm, Cl 10.9

2шт.

3

829-1420

NUT,M20, Cl 10

2шт.

4

87655047

SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm Thk

4шт.

5

144509A1

CONSTRUCTION DIA

Front Counterweight, 440Lb, Incl 1 - 4

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
