(39.100.AB[02]) - MAIN FRAME

Запчасти Case 580N EP (39.100.AB[02]) - MAIN FRAME (39) - FRAMES AND BALLASTING

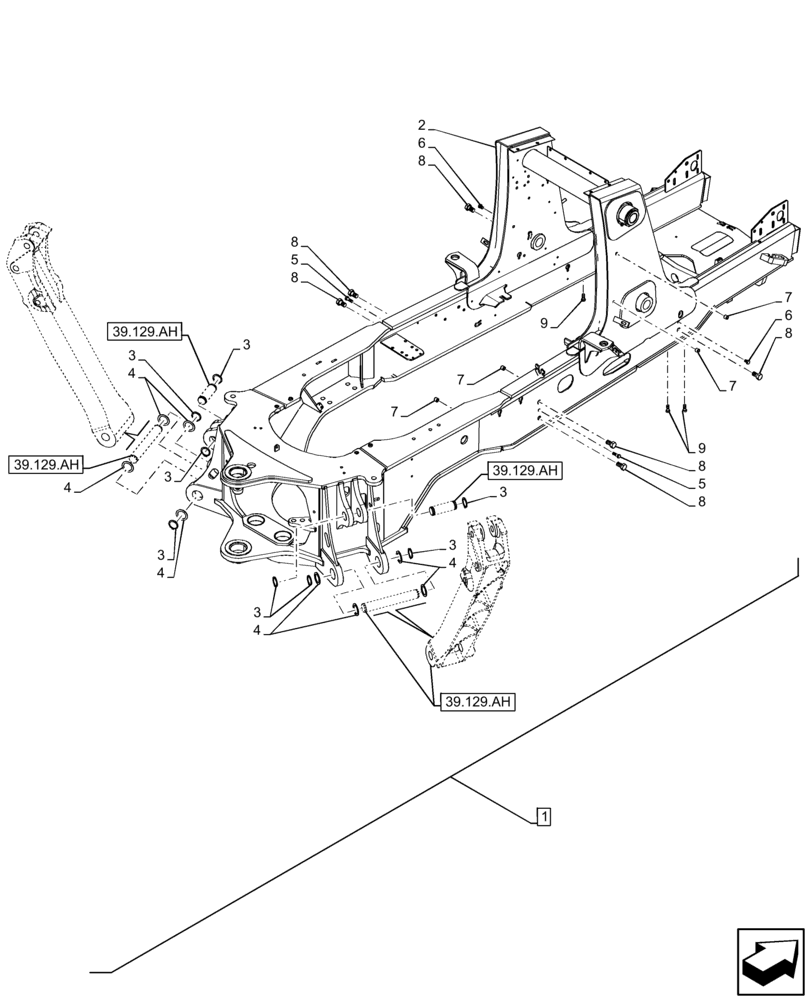

Схема запчастей Case 580N EP - (39.100.AB[02]) - MAIN FRAME (39) - FRAMES AND BALLASTING
9
3
4
6
4
39.129.ah
3
8
8
3
39.129.ah
4
3
5
9
6
8
1
8
7
7
8
4
3
2
8
39.129.ah
7
3
5
39.129.ah
4
7
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47556741

FRAME

ASSY, Incl 2, 5 - 9

1шт.

See Chassis Component also in Figures 39.100.AB (01)

1шт.

2

NSS

NOT SOLD SEPARAT

Frame, Incl in 1

1шт.

3

103-16175

SNAP RING,#175, Ext

8шт.

4

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

8шт.

5

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

2шт.

6

388113

BOLT,Hex, M12 x 1.75 x 16mm, Cl 8.8, Full Thd

2шт.

7

185356A1

BOSS

4шт.

8

73172048

BOLT,Hex, M20 x 2.5 x 35mm, Cl 8.8, Full Thd

6шт.

9

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

3шт.

Выбрано товаров: 10
