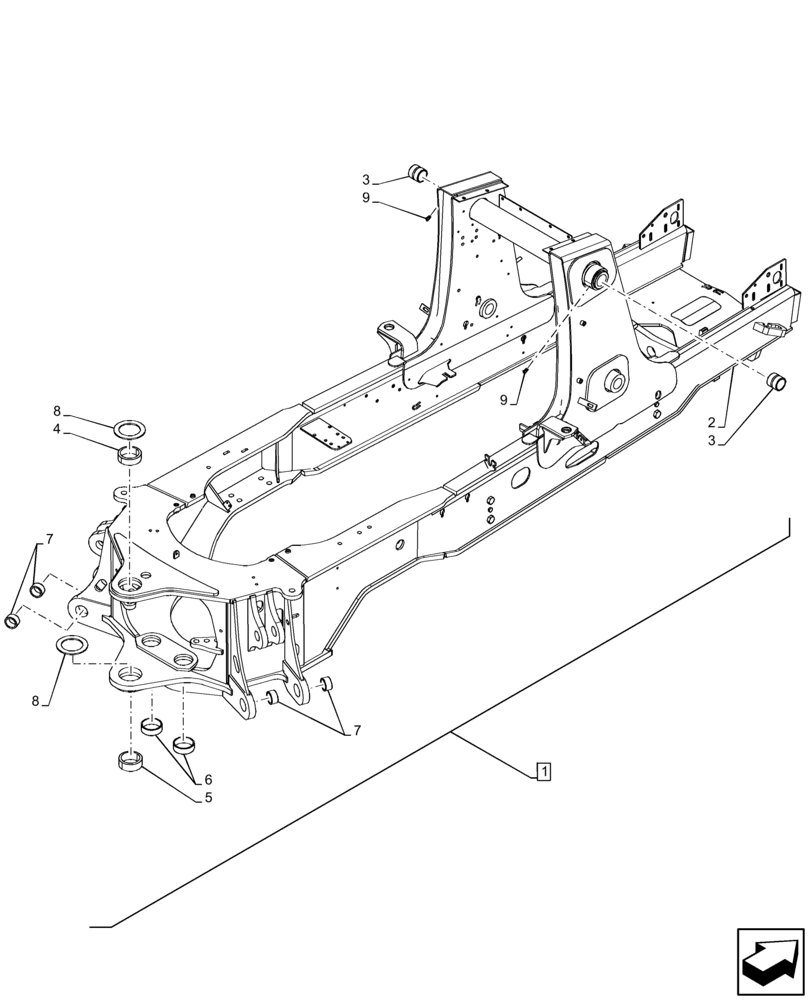

Запчасти Case 580N EP (39.100.AB[01]) - MAIN FRAME (39) - FRAMES AND BALLASTING

1

47556741

FRAME

ASSY, Incl 2 - 9

1шт.

See Chassis Component also in Figures 39.100.AB (02)

1шт.

2

NSS

NOT SOLD SEPARAT

Frame, Incl in 1

1шт.

3

84217542

BUSHING,50.23mm ID x 60mm OD x 55mm L

Cross Tube

2шт.

4

84226809

BUSHING,80.19mm ID x 100mm OD x 32mm L

1шт.

5

84226810

BUSHING,80.19mm ID x 100mm OD x 38mm L

1шт.

6

114318A1

BUSHING,80.19mm ID x 90mm OD x 29.35mm L

2шт.

7

107124A1

BUSHING,44.75mm ID x 57.15mm OD x 29mm L

4шт.

8

220413A1

SPACER,93mm ID x 135mm OD x 5mm Thk

2шт.

9

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

2шт.
