Запчасти Case 580N EP (35.740.AE[01]) - VAR - 423076 - EXTENDABLE DIPPER, CYLINDER (35) - HYDRAULIC SYSTEMS

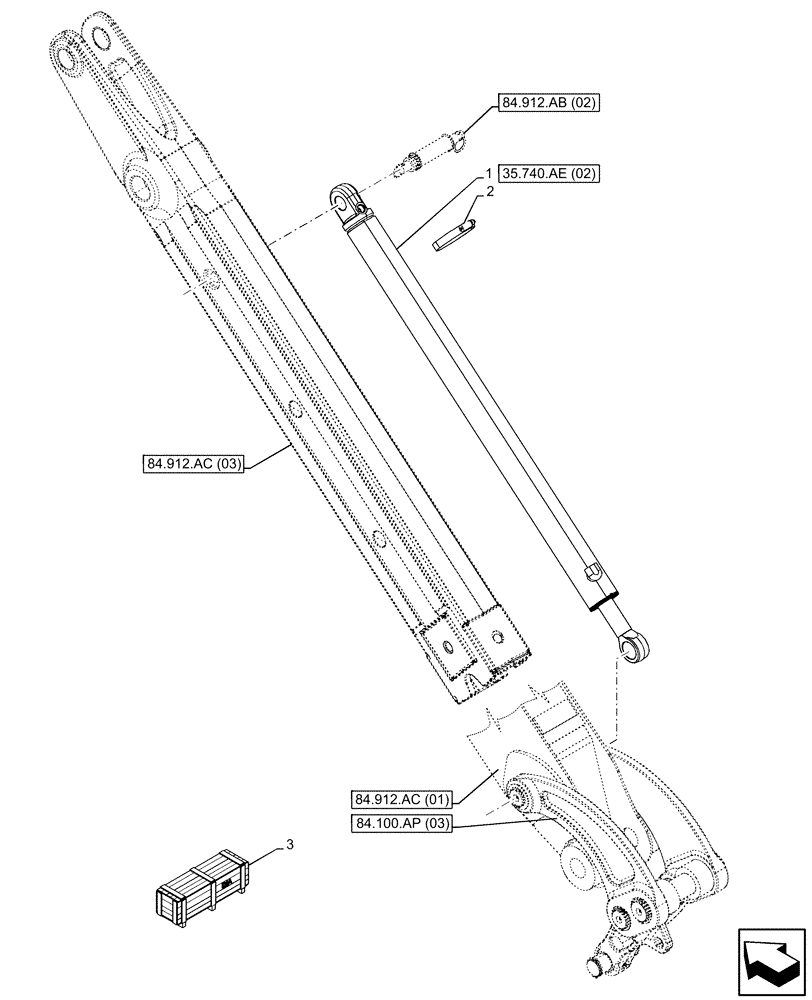

Схема запчастей Case 580N EP - (35.740.AE[01]) - VAR - 423076 - EXTENDABLE DIPPER, CYLINDER (35) - HYDRAULIC SYSTEMS
84.912.ac (03)
3
2
1
84.100.ap (03)
35.740.ae (02)
84.912.ab (02)
84.912.ac (01)

Артикул

Название

Примечание

Количество

1

84421678

HYDRAULIC CYLINDER,Double Acting, 44.4mm Rod, 1068mm Stroke

ASSY

1шт.

2

214-3172

HOSE CLAMP,3-3/4" - 4-5/8", HD Worm

1шт.

3

47520386

CONSTRUCTION DIA

Convert Standard Dipper to Extendable Dipper W/ CASE C, Incl 1, 2

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

3

47520390

CONSTRUCTION DIA

Convert Standard Dipper to Extendable Dipper, Hand Swing Control, Incl 1, 2

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 6
