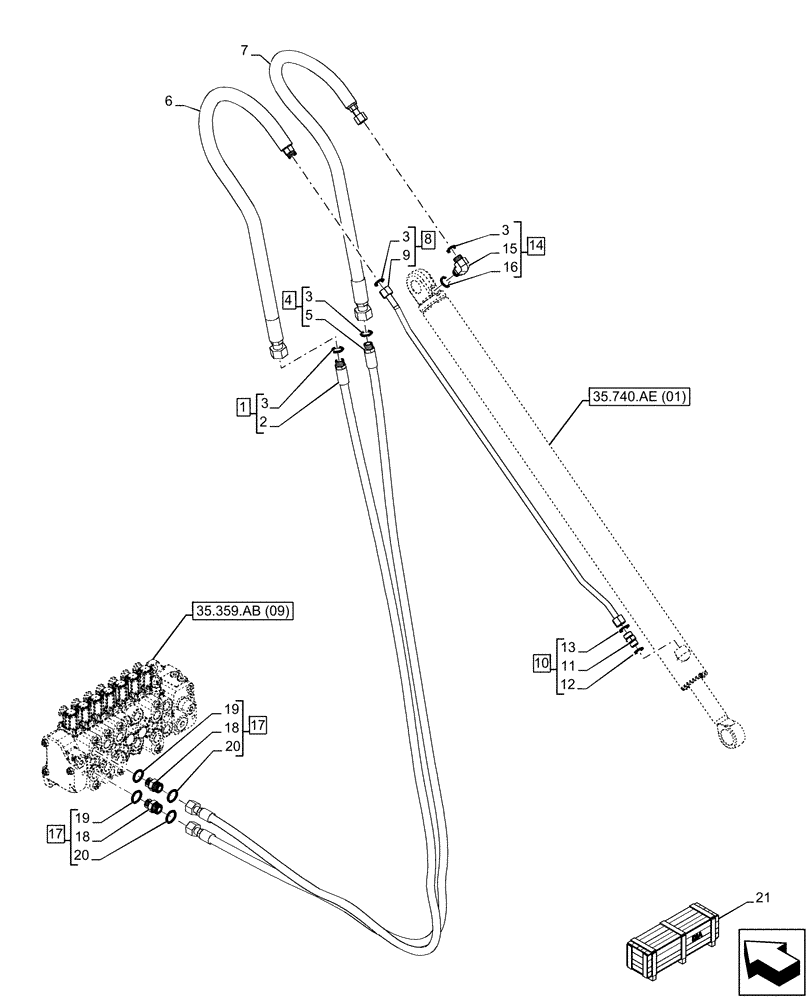

Запчасти Case 580N EP (35.740.AC[01]) - VAR - 423076 - EXTENDABLE DIPPER, CYLINDER, LINE (35) - HYDRAULIC SYSTEMS

1

84263639

HOSE ASSY.,16mm ID x 2766mm L

Valve to Backhoe, Incl 2, 3 (Qty 1)

1шт.

2

NSS

NOT SOLD SEPARAT

Hose, Incl in 1

1шт.

3

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

4

84257618

HYDRAULIC HOSE,16mm ID x 2750mm L

ASSY, Valve to Backhoe, Incl 3 (Qty 1), 5

1шт.

5

NSS

NOT SOLD SEPARAT

Hose, Incl in 4

1шт.

6

84343074

HOSE,12.5mm ID x 945mm L

Backhoe Cylinder Rod

1шт.

7

84343076

HOSE,12.5mm ID x 958mm L

Backhoe Cylinder Head

1шт.

8

84295701

HYD TUBE

1154mm L, ASSY, Backhoe Cylinder Rod, Incl 3 (Qty 1), 9

1шт.

9

NSS

NOT SOLD SEPARAT

Tube, Incl in 8

1шт.

10

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

ASSY, Incl 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

Connector, Incl in 10

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

13

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

14

87675522

90 ELBOW,90 Degree 1"-14 x 7/8"-14 Adj ORFS

ASSY, Incl 3 (Qty 1), 15, 16

1шт.

15

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 14

1шт.

16

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

17

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

ASSY, Incl 18 - 20

2шт.

18

NSS

NOT SOLD SEPARAT

Connector, Incl in 17

1шт.

19

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

20

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

21

47520386

CONSTRUCTION DIA

Convert Standard Dipper to Extendable Dipper W/ Case C, Incl 1, 2, 6 - 13, 17 - 19

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

21

47520390

CONSTRUCTION DIA

Convert Standard Dipper to Extendable Dipper, Hand Swing Control, Incl 1, 2, 4 - 13, 17 - 19

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
