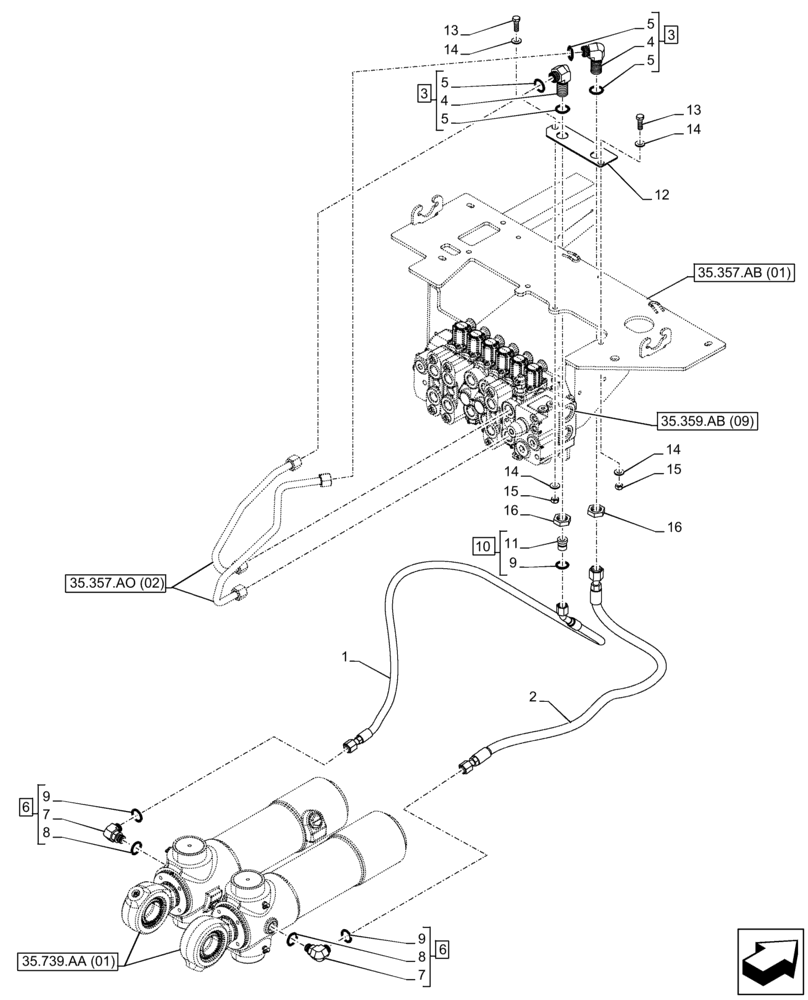

Запчасти Case 580N EP (35.739.AE[05]) - BOOM SWING, PILOT CONTROLS, W/O DAMPING VALVE, LINE (35) - HYDRAULIC SYSTEMS

1

47628096

HYDRAULIC HOSE,10mm ID x 1375mm L

No Swing Dampening for Pilot Control, 1375mm L

1шт.

2

47365460

HYDRAULIC HOSE,12.5mm ID x 940mm L

STD Valve Top to Swing Cylinder, 940mm L

1шт.

3

87028944

ELBOW,90 Degree, 1"-14 ORFS, Bulkhead

ASSY, Incl 4 (Qty 1), 5 (Qty 1)

2шт.

4

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 3

2шт.

5

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

6

9992307

90 ELBOW,90 Degree, 13/16"-16 x 3/4"-16 Adj, ORFS

ASSY, Incl 7 (Qty 1), 8 (Qty 1), 9 (Qty 1)

2шт.

7

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 3

2шт.

8

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

9

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

10

84989629

HYD CONNECTOR,13/16" - 16 ORB x 1" ORFS

ASSY, Incl 9 (Qty 1), 11

1шт.

11

NSS

NOT SOLD SEPARAT

Reducer, Incl in 10

1шт.

12

47626499

PLATE

1шт.

13

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

14

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

4шт.

15

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

16

86639085

BHD LOCK NUT,1"-14, Bulkhead

2шт.
