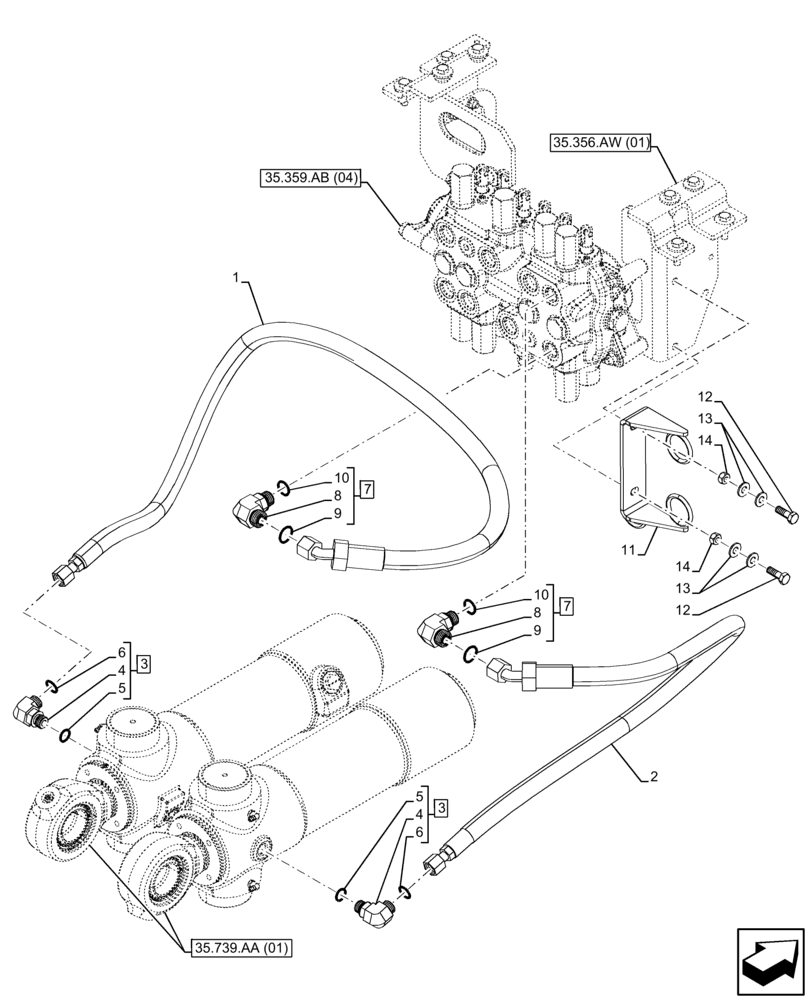

Запчасти Case 580N EP (35.739.AE[04]) - BOOM SWING, MECHANICAL, CONTROLS, W/O DAMPING VALVE, LINE (35) - HYDRAULIC SYSTEMS

1

47647466

HYDRAULIC HOSE,12.5mm ID x 1530mm L

No Standard Mechanical Bottom, 1530mm L

1шт.

2

47647457

HYDRAULIC HOSE,12.5mm ID x 1100mm L

No Standard Mechanical Top, 1100mm L

1шт.

3

9992307

90 ELBOW,90 Degree, 13/16"-16 x 3/4"-16 Adj, ORFS

ASSY, Incl 4 (Qty 1), 5 (Qty 1), 6 (Qty 1)

2шт.

4

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 3

2шт.

5

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

6

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

7

87675522

90 ELBOW,90 Degree 1"-14 x 7/8"-14 Adj ORFS

ASSY, Incl 8 (Qty 1), 9 (Qty 1), 10 (Qty 1)

2шт.

8

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 7

2шт.

9

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

10

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

11

47647467

BRACKET

No Swing Damp

1шт.

12

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

13

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

4шт.

14

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.
