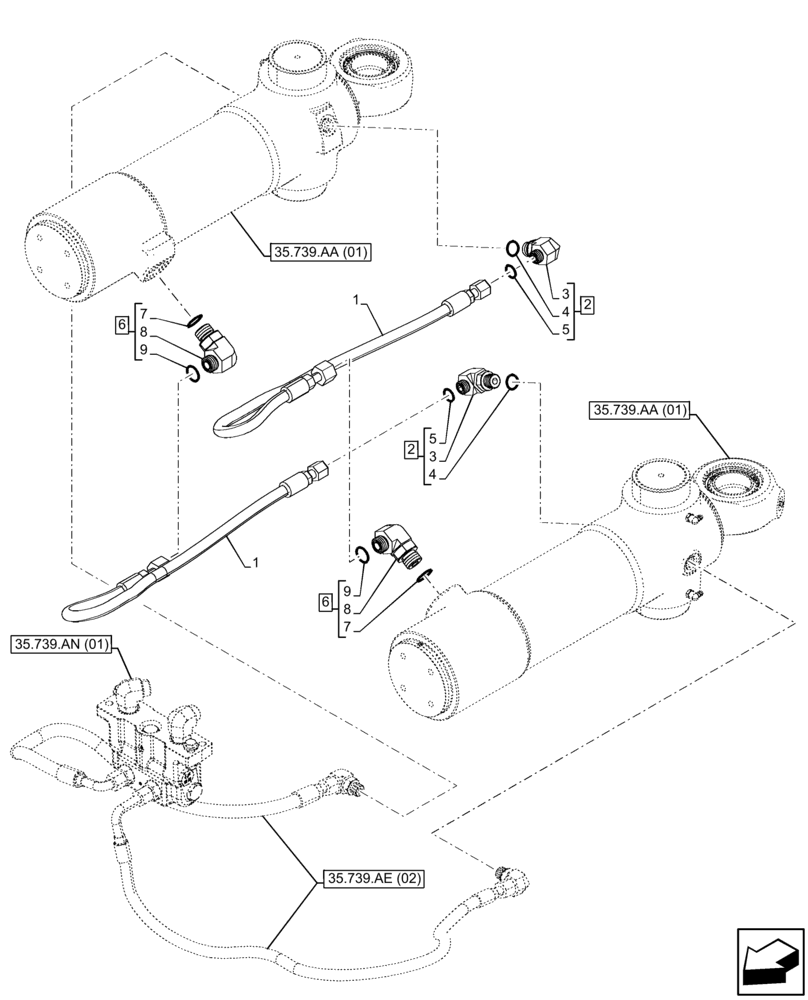

Запчасти Case 580N EP (35.739.AE[01]) - BACKHOE ARM, SLEWING/SWING CYLINDER, LINES (35) - HYDRAULIC SYSTEMS

1

84318337

HYDRAULIC HOSE,9.53mm ID x 802mm L, SAE 100R16

Swing Cylinder Cross-Over

2шт.

2

85802961

ELBOW,13/16"-16 UN-2A x 7/8"-14 UNF-2A

ASSY, Incl 3 (Qty 1), 4 (Qty 1), 5 (Qty 1)

2шт.

3

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 2

2шт.

4

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

5

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

6

9991973

ELBOW,1-14" ORFS x 1-1/16"-12 ORB

ASSY, Incl 7 (Qty 1), 8 (Qty 1), 9 (Qty 1)

2шт.

7

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

8

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 6

2шт.

9

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.
