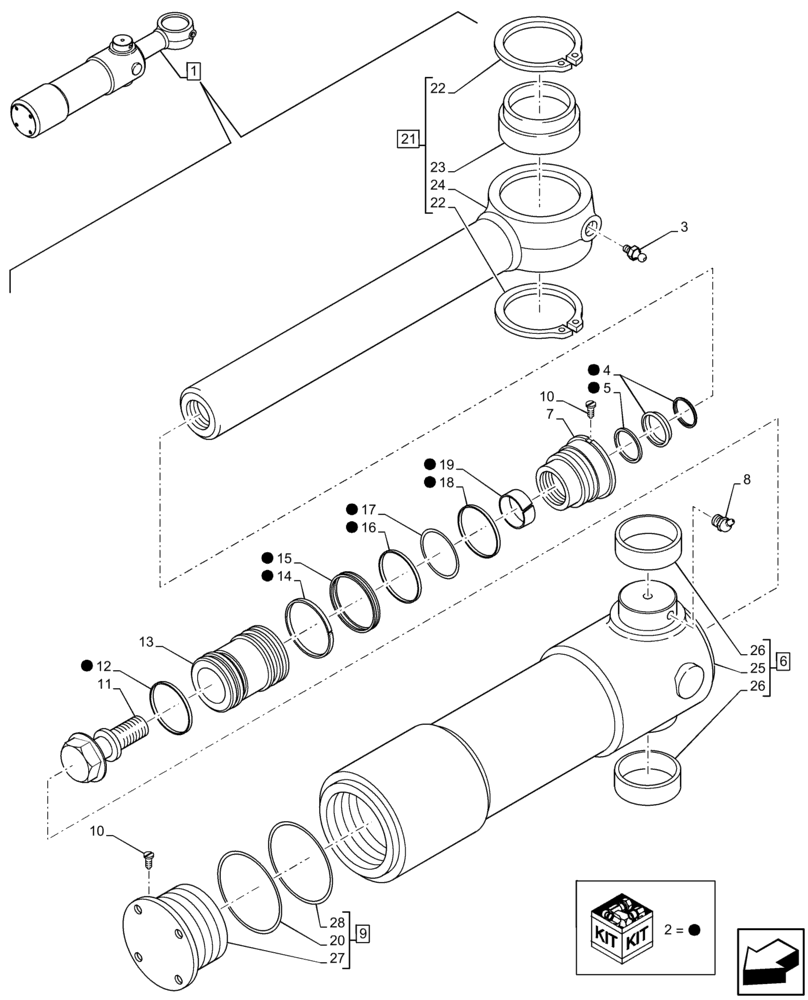

Запчасти Case 580N EP (35.739.AA[02]) - BACKHOE ARM, SLEWING/SWING CYLINDER, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

84426789

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 95.3mm Bore, 292mm Stroke

Swing, ASSY, Incl 2 - 28

1шт.

2

84172816

SEAL KIT,50.8mm Rod, 95.3mm Bore

Seal Repair, Incl 4, 5, 12, 13 - 19

1шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

4

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

1шт.

5

1542876C1

SEAL KIT,50.8mm Rod

1шт.

6

188028A2

TUBE,527.7 mm Length

ASSY, Incl 25, 26

1шт.

7

188032A2

GLAND,95.3mm Bore, 50.8mm Rod, 82.4mm W

1шт.

8

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

2шт.

9

188035A1

CYLINDER END CAP

ASSY, Incl 20, 27, 28

1шт.

10

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

2шт.

11

86982439

SPECIAL BOLT,Hex, 14, 1 x 4"

1шт.

12

191252A1

SEALING RING,85.9mm ID x 95.3mm OD x 4.7mm Thk

1шт.

13

188034A3

PISTON,94.95mm Bore, 50.83mm Rod, 116mm W

1шт.

14

1980245C1

SEALING RING,89mm ID x 95.2mm OD x 12.5mm Thk

1шт.

15

1340763C1

RING,Square, 5.28mm Thk x 81.74mm ID

1шт.

16

1340762C1

SEAL,92mm ID x 96.5mm OD x 6.9mm Thk

1шт.

17

238-5237

O-RING,0.139" Thk x 3.359" ID, -237, Cl 5, 75 Duro

1шт.

18

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

1шт.

19

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

1шт.

20

238-5239

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

1шт.

21

87413722

PISTON ROD

ASSY, Incl 22 - 24

1шт.

22

100-21315

SNAP RING,3.156", Int, #315

2шт.

23

137248A1

RING,50.79mm ID x 80.96mm OD x 44.45mm W

1шт.

24

NSS

NOT SOLD SEPARAT

Rod, Incl in 21

1шт.

25

NSS

NOT SOLD SEPARAT

Body, Incl in 6

1шт.

26

124568A2

RING,69.92mm ID x 77mm OD x 28mm L

2шт.

27

188036A1

CAP,Ductile Iron

1шт.

28

G109299

BACK-UP RING,94.87mm ID x 97.67mm OD x 1.4mm Thk

1шт.
