Запчасти Case 580N EP (35.739.AA[01]) - BACKHOE ARM, SLEWING/SWING CYLINDER (35) - HYDRAULIC SYSTEMS

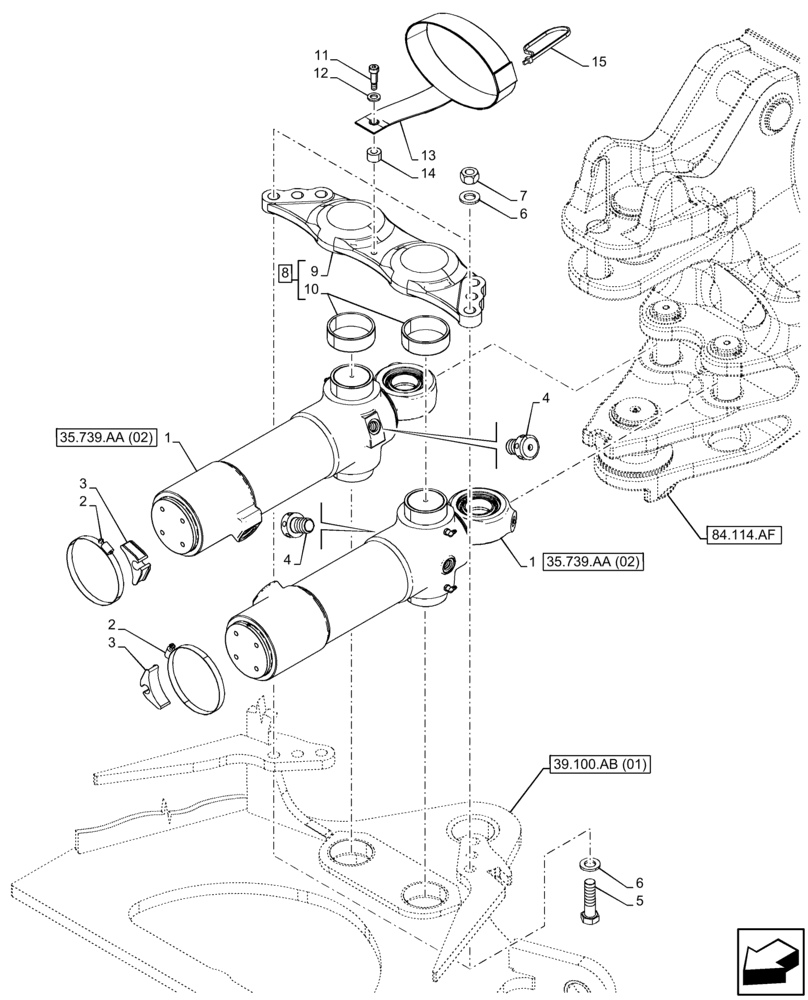

Схема запчастей Case 580N EP - (35.739.AA[01]) - BACKHOE ARM, SLEWING/SWING CYLINDER (35) - HYDRAULIC SYSTEMS
14
2
1
3
12
6
5
84.114.af
2
4
35.739.aa (02)
9
13
35.739.aa (02)
1
39.100.ab (01)
11
15
7
3
6
10
8
4

Артикул

Название

Примечание

Количество

1

84426789

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 95.3mm Bore, 292mm Stroke

Swing, ASSY

2шт.

2

214-1492

HOSE CLAMP,#92, 5.38" - 6.25", Type F Worm

2шт.

3

D142787

SPACER

2шт.

4

192971A1

ORIFICE,9.52mm OD x 7.14mm ID, 3.18mm x 6 ID, 3.61mm ID

2шт.

5

827-20075

BOLT,Hex, M20 x 2.5 x 75mm, Cl 10.9, Full Thd

6шт.

6

87655047

SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm Thk

12шт.

7

829-1420

NUT,M20, Cl 10

6шт.

8

84336208

BEAM

ASSY, Incl 9, 10

1шт.

9

NSS

NOT SOLD SEPARAT

Beam, Incl in 8

1шт.

10

114318A1

BUSHING,80.19mm ID x 90mm OD x 29.35mm L

2шт.

11

84348245

SCREW,Hex Soc, M10 x 12 x 25mm, Cl 12.9

1шт.

12

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

13

84348263

STRAP,571.5mm L x 50.8mm W

1шт.

14

84348221

SPACER,12.5mm ID x 26mm OD x 16mm L

1шт.

15

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.

Выбрано товаров: 15
