(35.738.AE[03]) - VAR - 423076 - BACKHOE BUCKET, EXTENDABLE DIPPER, CYLINDER, LINES

Запчасти Case 580N EP (35.738.AE[03]) - VAR - 423076 - BACKHOE BUCKET, EXTENDABLE DIPPER, CYLINDER, LINES (35) - HYDRAULIC SYSTEMS

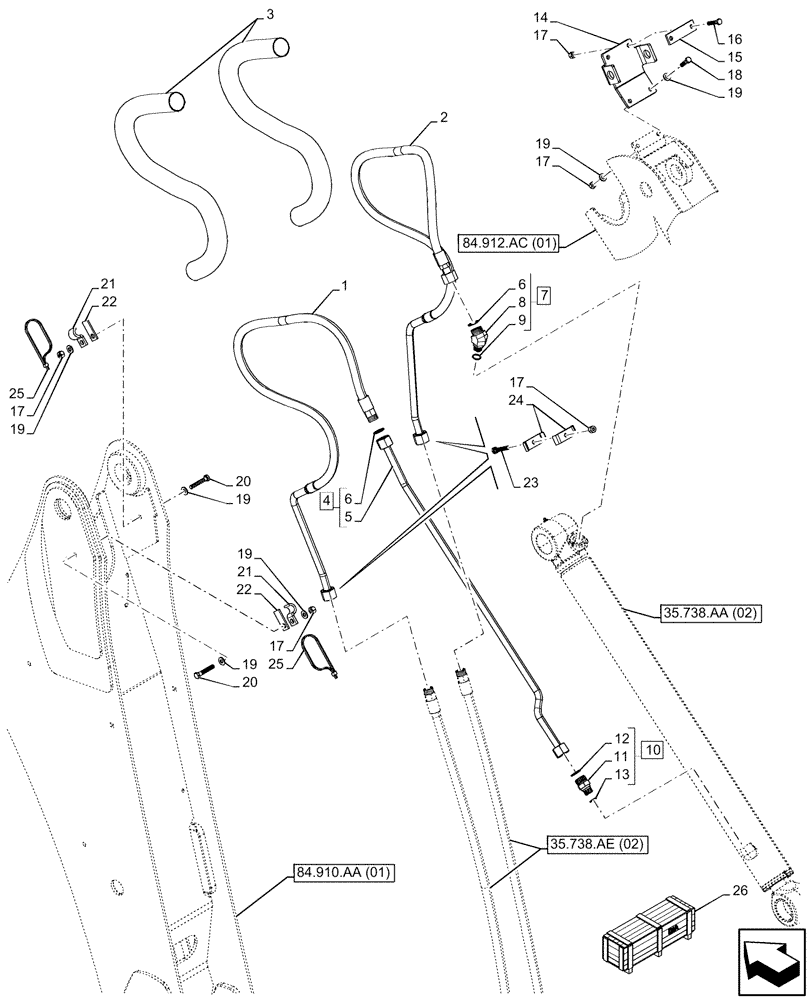

Схема запчастей Case 580N EP - (35.738.AE[03]) - VAR - 423076 - BACKHOE BUCKET, EXTENDABLE DIPPER, CYLINDER, LINES (35) - HYDRAULIC SYSTEMS
84.912.ac (01)
17
18
20
25
17
9
21
6
7
22
5
26
12
23
1
3
17
4
22
6
11
8
20
17
24
13
15
21
2
19
19
25
10
17
19
14
16
19
19
19
35.738.ae (02)
35.738.aa (02)
84.910.aa (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84283822

HYD TUBE

Bucket Cylinder Rod

1шт.

2

84283823

HYD TUBE

Bucket Cylinder Head

1шт.

3

84373395

PROTECTIVE SLEEVE,72.4mm ID x 1105mm L

2шт.

4

84305540

TUBE

ASSY, Bucket Cylinder Rod, Incl 5, 6 (Qty 1)

1шт.

5

NSS

NOT SOLD SEPARAT

1шт.

6

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

7

201-352

ELBOW,45 Degree Elbow, 1-3/16" - 12 Male ORFS x 7/8" - 14 Male ORB

ASSY, Incl 6 (Qty 1), 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 7

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

10

9840534

HYD CONNECTOR,1-3/16" - 12 ORFS x 7/8" - 14 ORB

ASSY, Incl 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

Connector, Incl in 10

1шт.

12

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

13

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

14

84359870

BRACKET

1шт.

15

101479A1

SUPPORT

1шт.

16

120113

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd

2шт.

17

412141

NUT,M10 x 1.5, Cl 8

7шт.

18

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

19

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

8шт.

20

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

21

84367726

CLAMP,3/4" Clamping tube

2шт.

22

84259030

SPACER

2шт.

23

120071

BOLT,Hex, M10 x 65, 8.8

1шт.

24

D143846

CLAMP

2шт.

25

L18331

CABLE TIE,375.9mm L, Nylon, Black

2шт.

26

47520386

CONSTRUCTION DIA

Convert Standard Dipper to Extendable Dipper W/ CASE C, Incl 3, 14 - 20, 23, 25

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

26

47520390

CONSTRUCTION DIA

Convert Standard Dipper to Extendable Dipper, Hand Swing Control, Incl 3, 4, 14 - 19, 23, 25

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

26

47674139

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Mechanical Control, Extendable Dipper, Incl 25

1шт.

Valid for 580N EP Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

26

47674177

CONSTRUCTION DIA

Uni-Dir, Mechanical Control, Extendable Dipper, Incl 25

1шт.

Valid for 580N EP Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
