Запчасти Case 580N EP (35.738.AE[01]) - VAR - 423075 - BACKHOE BUCKET, STANDARD DIPPER, CYLINDER, LINES (35) - HYDRAULIC SYSTEMS

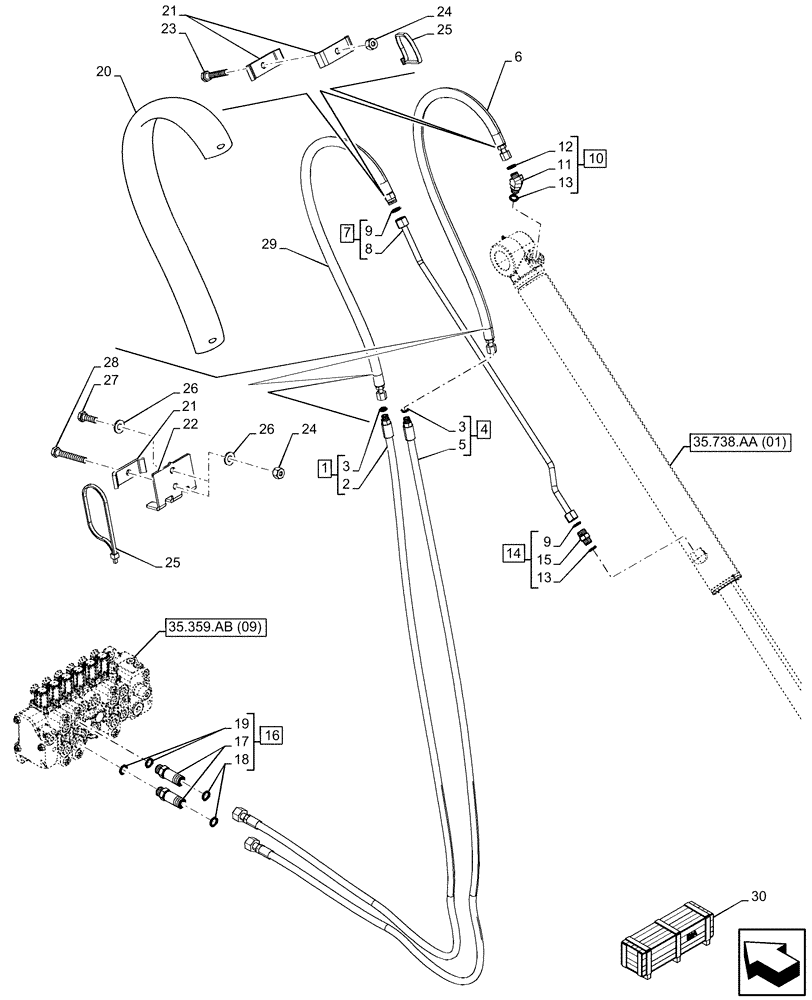

Схема запчастей Case 580N EP - (35.738.AE[01]) - VAR - 423075 - BACKHOE BUCKET, STANDARD DIPPER, CYLINDER, LINES (35) - HYDRAULIC SYSTEMS
35.359.ab (09)
1
28
8
13
19
23
15
17
10
20
7
29
12
11
16
27
25
24
9
21
9
4
2
18
3
3
26
6
13
22
24
26
21
30
25
14
5
35.738.aa (01)

Артикул

Название

Примечание

Количество

1

84319555

HOSE,12.5mm ID x 2696mm L

ASSY, Valve to Bucket, Incl 2, 3 (Qty 1)

1шт.

2

NSS

NOT SOLD SEPARAT

Hose, Incl in 1

1шт.

3

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

4

84319552

HOSE,12.5mm ID x 2734mm L

ASSY, Valve to Bucket, Incl 3 (Qty 1), 5

1шт.

5

NSS

NOT SOLD SEPARAT

Hose, Incl in 4

1шт.

6

84266069

HOSE ASSY.,12.5mm ID x 1241mm L

Bucket Head, 1241mm L

1шт.

7

84319950

TUBE

ASSY, Backhoe Bucket Rod, Incl 8, 9 (Qty 1)

1шт.

8

NSS

NOT SOLD SEPARAT

Tube, Incl in 7

1шт.

9

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

10

201-377

ELBOW,45 Degree Elbow, 13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

ASSY, Incl 11 - 13 (Qty 1)

1шт.

11

NSS

NOT SOLD SEPARAT

45° Elbow, Incl in 10

1шт.

12

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

14

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

ASSY, Incl 9 (Qty 1), 13 (Qry 1), 15

1шт.

15

NSS

NOT SOLD SEPARAT

Connector, Incl in 14

1шт.

16

87393627

HYD CONNECTOR

ASSY, Incl 17 (Qty 1), 18 (Qty 1), 19 (Qty 1)

2шт.

17

NSS

NOT SOLD SEPARAT

Connector, Incl in 16

2шт.

18

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

19

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

20

84321337

SLEEVE,1245mm L

1шт.

21

D143846

CLAMP

3шт.

22

84408246

HOSE CLAMP

1шт.

23

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

1шт.

24

412141

NUT,M10 x 1.5, Cl 8

3шт.

25

L18331

CABLE TIE,375.9mm L, Nylon, Black

2шт.

26

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

3шт.

27

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

1шт.

28

43144

BOLT,Hex, M10 x 70mm, Cl 8.8

1шт.

29

84266070

HOSE ASSY.,12.5mm ID x 1248mm L

Bucket Rod, 1248mm L

1шт.

30

47674141

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Mechanical Control, Standard Dipper, Incl 25

1шт.

Valid for 580N EP Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

30

47674176

CONSTRUCTION DIA

Uni-Dir, Mechanical Control, Standard Dipper, Incl 25

1шт.

Valid for 580N EP Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 35
