(35.738.AA[01]) - VAR - 423075 - BACKHOE BUCKET, CYLINDER

Запчасти Case 580N EP (35.738.AA[01]) - VAR - 423075 - BACKHOE BUCKET, CYLINDER (35) - HYDRAULIC SYSTEMS

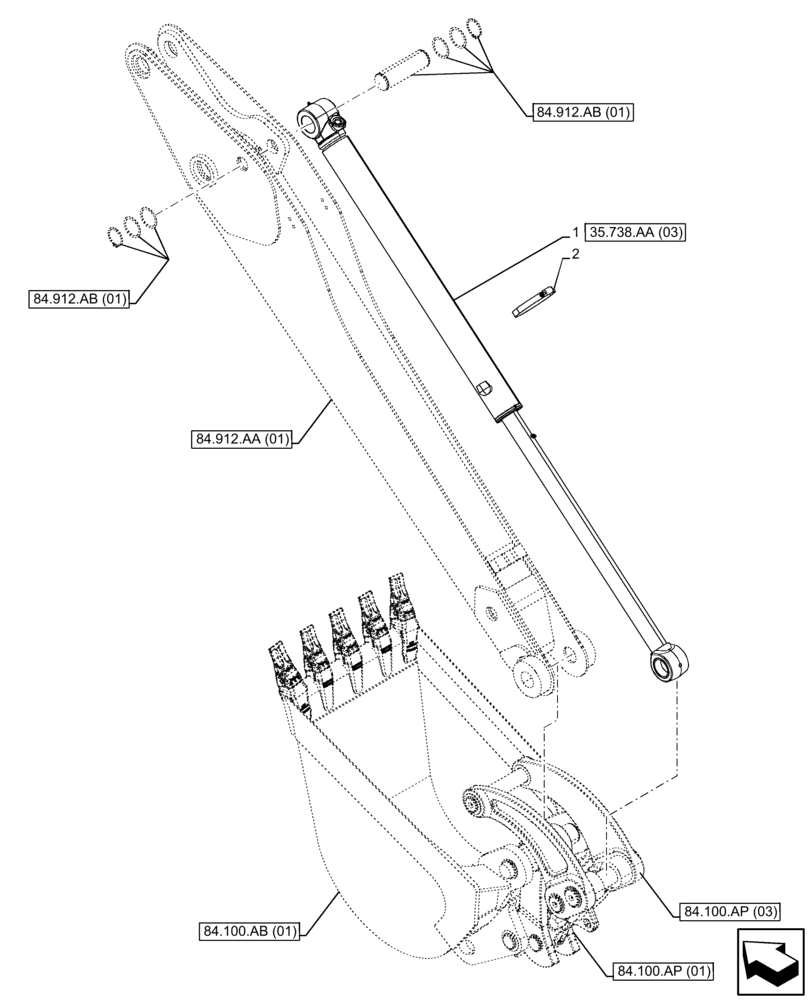

Схема запчастей Case 580N EP - (35.738.AA[01]) - VAR - 423075 - BACKHOE BUCKET, CYLINDER (35) - HYDRAULIC SYSTEMS
84.100.ap (01)
84.912.aa (01)
2
84.912.ab (01)
84.912.ab (01)
84.100.ap (03)
35.738.aa (03)
1
84.100.ab (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84421594

HYDRAULIC CYLINDER,Double Acting, 57.2mm Rod, 897.9mm Stroke

ASSY

1шт.

1

84421594R

REMAN-HYD CYLINDER

1шт.

1

84421594C

CORE-HYD CYLINDER

1шт.

2

214-1472

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

1шт.

Выбрано товаров: 4
