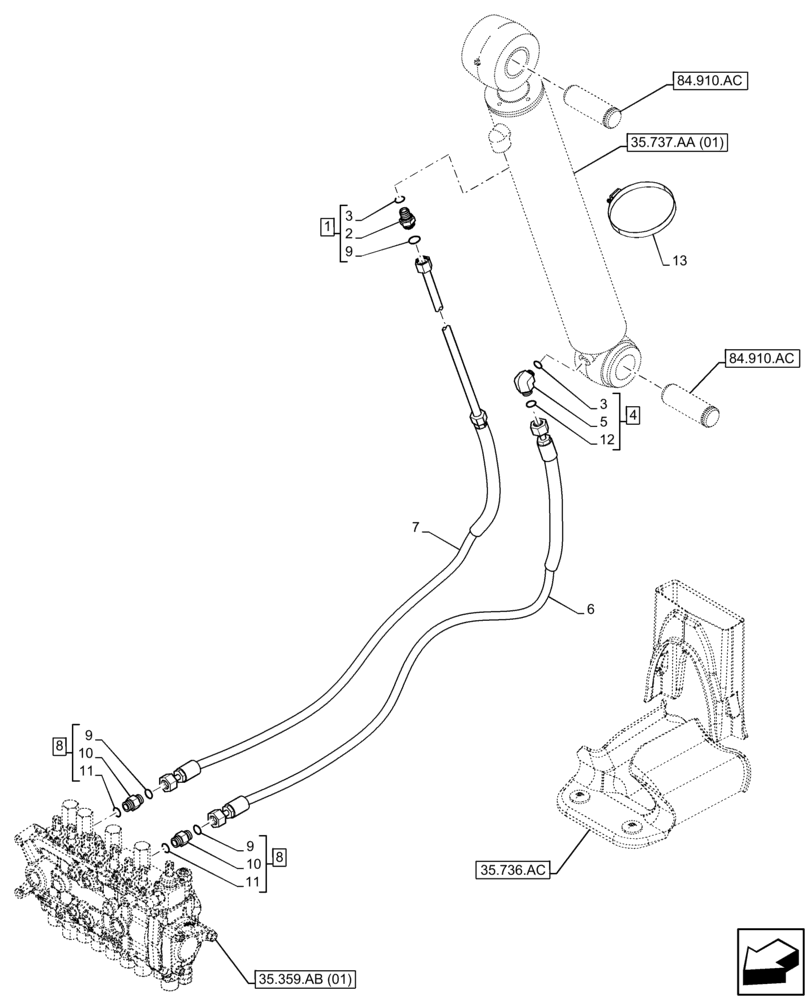

Запчасти Case 580N EP (35.737.AE) - DIPPER, CYLINDER, BOOM, LINE (35) - HYDRAULIC SYSTEMS

1

9840534

HYD CONNECTOR,1-3/16" - 12 ORFS x 7/8" - 14 ORB

ASSY, Incl 2, 3 (Qty 1), 9 (Qty 1)

1шт.

2

NSS

NOT SOLD SEPARAT

Connector, Incl in 1

1шт.

3

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

4

87675522

90 ELBOW,90 Degree 1"-14 x 7/8"-14 Adj ORFS

ASSY, Incl 3 (Qty 1), 5, 12

1шт.

5

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 4

1шт.

6

84257621

HYDRAULIC HOSE,15.88mm ID x 2073mm L, SAE 100R16

Dipper Cylinder Head

1шт.

7

84287836

HYD TUBE

Dipper Cylinder Rod

1шт.

8

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

ASSY, Incl 9 (Qty 1), 10 (Qty 1), 11 (Qty 1)

2шт.

9

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3шт.

10

NSS

NOT SOLD SEPARAT

Connector, Incl in 8

2шт.

11

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

12

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

13

214-3188

HOSE CLAMP,4-3/4" - 5-5/8", HD Worm

2шт.
