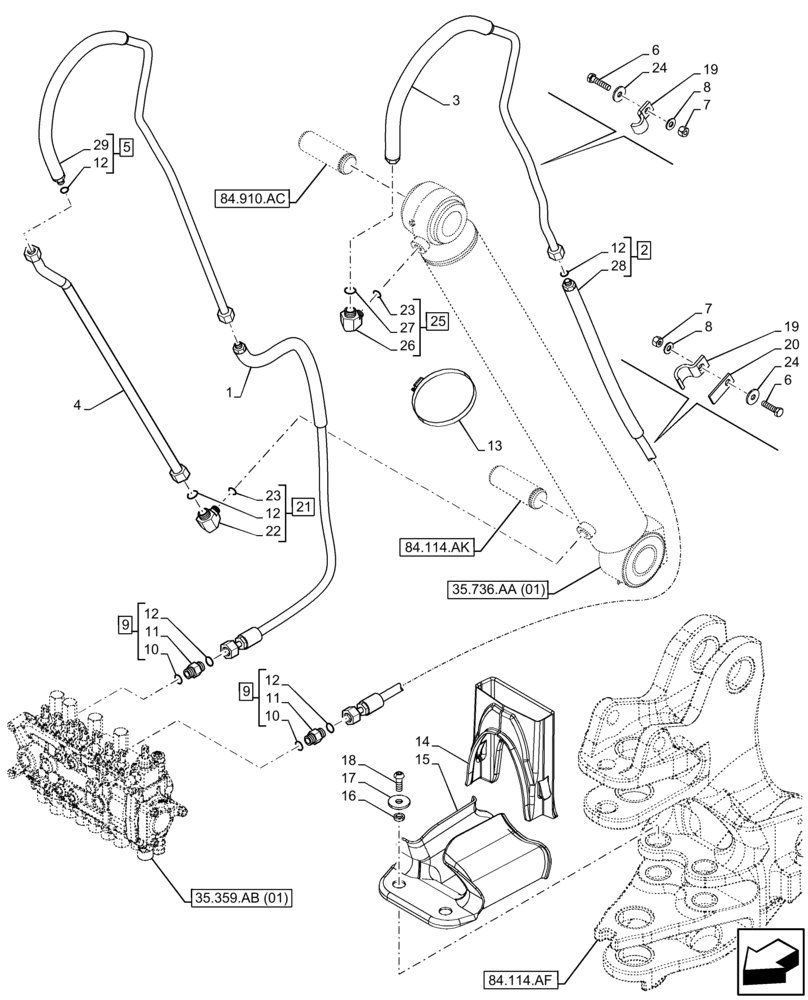

Запчасти Case 580N EP (35.736.AC) - BACKHOE BOOM CYL. SECTION, LINE (35) - HYDRAULIC SYSTEMS

1

84263635

HYDRAULIC HOSE,15.88mm ID x 2064mm L, SAE 100R16

Valve to Boom

1шт.

2

84257632

HYDRAULIC HOSE,15.88mm ID x 2043mm L, SAE 100R16

Valve to Boom, ASSY, Incl 12 (Qty 1), 28

1шт.

3

84257628

HYD TUBE

Boom Cylinder Head

1шт.

4

84257622

HYD TUBE

Boom Cylinder Rod

1шт.

5

84280749

HYD TUBE

Boom Cylinder Rod, ASSY, Incl 12 (Qty 1), 29

1шт.

6

120071

BOLT,Hex, M10 x 65, 8.8

4шт.

7

412141

NUT,M10 x 1.5, Cl 8

4шт.

8

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

4шт.

9

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

ASSY, Incl 10 (Qty 1), 11 (Qty 1), 12 (Qty 1)

2шт.

10

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

11

NSS

NOT SOLD SEPARAT

Connector, Incl in 9

2шт.

12

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

5шт.

13

214-3196

HOSE CLAMP,5-1/4" - 6-1/8", HD Worm

2шт.

14

84574630

GUARD

1шт.

15

84303525

GUARD

1шт.

16

84286039

SPACER,13.87mm ID x 21.34mm OD x 5.4mm Thk

2шт.

17

9511052

WASHER,13.5mm ID x 44mm OD x 4mm Thk

2шт.

18

84299393

HEX SOC SCREW,Hex Socket Button Head, M12 x 1.75 x 35mm, Cl. 10.9

2шт.

19

84367726

CLAMP,3/4" Clamping tube

4шт.

20

84259030

SPACER

2шт.

21

87656136

HYD CONNECTOR

ASSY, Incl 12 (Qty 1), 22, 23 (Qty 1)

1шт.

22

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 21

1шт.

23

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

24

87687101

WASHER,10.65mm ID x 31mm OD x 3.3mm Thk

4шт.

25

87675522

90 ELBOW,90 Degree 1"-14 x 7/8"-14 Adj ORFS

ASSY, Incl 23 (Qty 1), 26, 27

1шт.

26

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 25

1шт.

27

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

28

NSS

NOT SOLD SEPARAT

Hydraulic Hose, Incl in 2

1шт.

29

NSS

NOT SOLD SEPARAT

Hydraulic Tube, Incl in 5

1шт.
