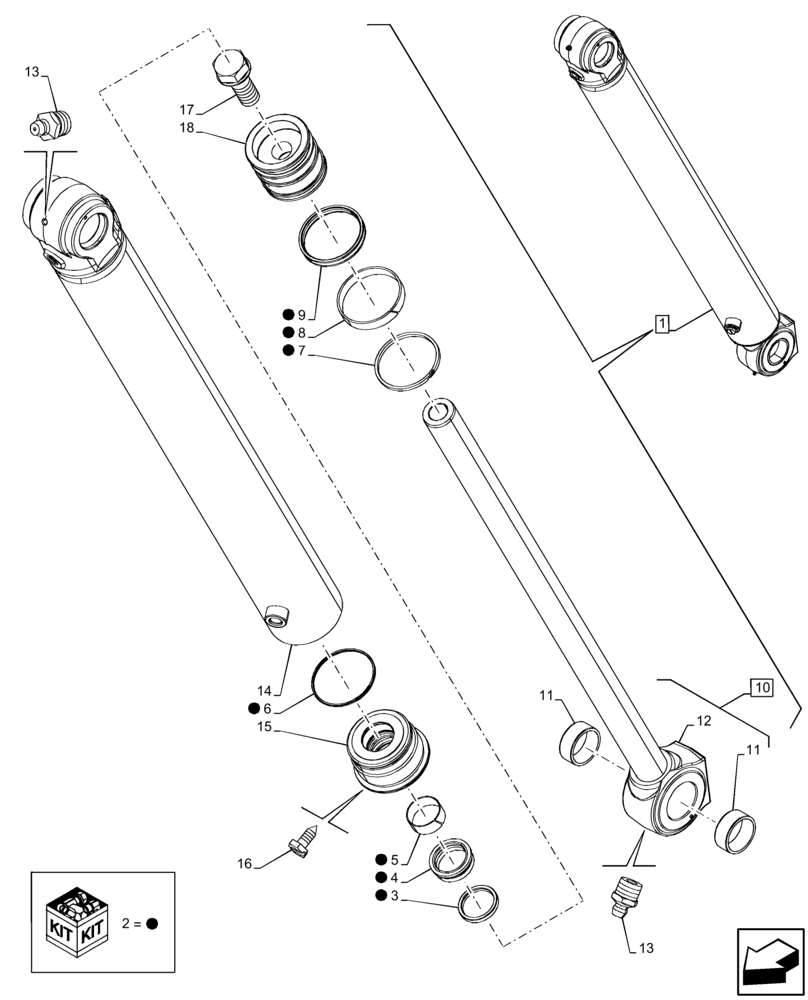

Запчасти Case 580N EP (35.736.AA[02]) - BACKHOE BOOM CYL. SECTION, CYLINDER, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

84551146

HYDRAULIC CYLINDER,Double Acting, 57.2mm Rod, 114.3mm Bore, 971.55mm Stroke

ASSY, Incl 2 - 18

1шт.

2

84259218

SEAL KIT,57.2mm Rod x 114.3mm Bore

Seal Repair 114.3mm x 57.2mm, Incl 3 - 9

1шт.

3

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

1шт.

4

1542877C1

SEAL KIT,57.2mm Rod

1шт.

5

1346476C1

RING,57.15mm ID, Int

1шт.

6

87615484

SEAL,108.43mm ID x 113.93mm OD x 5.41mm Thk

1шт.

7

182116A1

RING,Locking, 108.64mm ID x 118.3mm OD x 6.33mm Thk

1шт.

8

G101996

WEAR RING,4.5" OD x 0.75" Thk

1шт.

9

87715787

SEAL,114.3mm OD

1шт.

10

84321897

ROD,57.2mm OD x 1251.2mm L

ASSY, Incl 11, 12

1шт.

11

123407A1

BUSHING,60.19mm ID x 70mm OD x 28mm L

2шт.

12

NSS

NOT SOLD SEPARAT

Rod, Incl in 10

1шт.

13

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

14

84401820

BARREL

1шт.

15

84238794

GLAND

1шт.

16

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

17

86982443

SPECIAL BOLT,1" 3/8 x 3.50 L

1шт.

18

84238796

PISTON ROD/GLAND,113.64mm Bore, 57.52mm Rod, 96.5mm W

1шт.
