(35.734.AD[03]) - VAR - 423049 - QUICK COUPLER, VALVE, HYDRAULIC LINE

Запчасти Case 580N EP (35.734.AD[03]) - VAR - 423049 - QUICK COUPLER, VALVE, HYDRAULIC LINE (35) - HYDRAULIC SYSTEMS

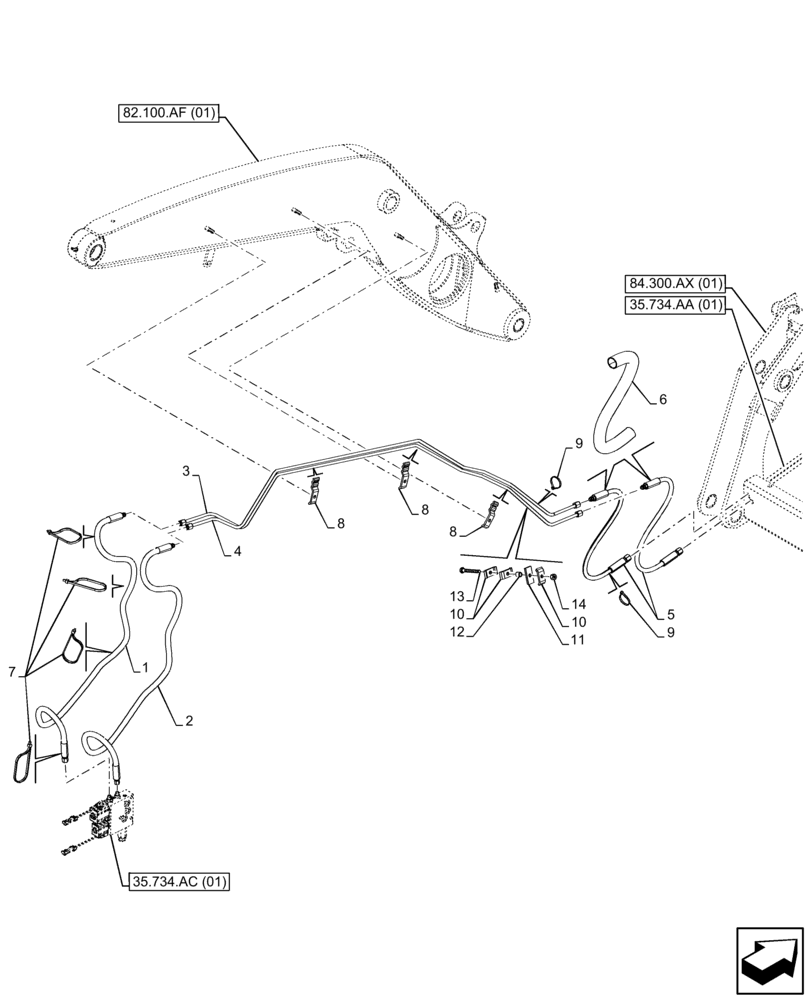

Схема запчастей Case 580N EP - (35.734.AD[03]) - VAR - 423049 - QUICK COUPLER, VALVE, HYDRAULIC LINE (35) - HYDRAULIC SYSTEMS
8
1
11
12
6
82.100.af (01)
10
35.734.ac (01)
2
5
13
9
7
3
8
10
84.300.ax (01)
14
8
9
35.734.aa (01)
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84419261

HOSE ASSY.,6.3mm ID x 1600mm L

Loader Coupler Port B

1шт.

2

84419262

HOSE ASSY.,6.3mm ID x 1600mm L

Loader Coupler Port A

1шт.

3

87716492

HYD TUBE

Coupler C2

1шт.

4

87716490

HYD TUBE

Coupler C1

1шт.

5

300996A3

HYDRAULIC HOSE,1/4" ID x 772mm L

Loader Coupler

2шт.

6

307277A1

PROTECTIVE SLEEVE,36.87mm ID x 850mm L

1шт.

7

L18331

CABLE TIE,375.9mm L, Nylon, Black

4шт.

8

302820A2

CLAMP

3шт.

9

L11541

CABLE TIE,203.2mm L, Nylon

2шт.

10

D138055

CLAMP

3шт.

11

84346489

PLATE

1шт.

12

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

1шт.

13

120073

BOLT,Hex, M10 x 86.58mm, Cl 8.8

1шт.

14

412141

NUT,M10 x 1.5, Cl 8

1шт.
