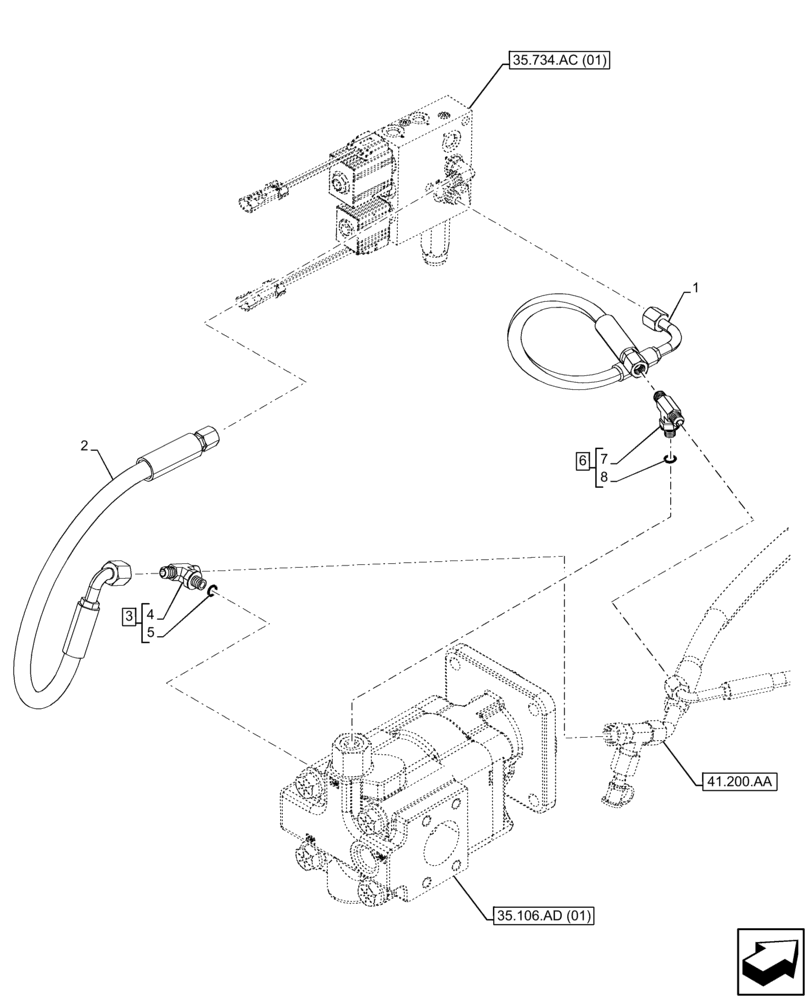

Запчасти Case 580N EP (35.734.AD[02]) - VAR - 423049 - QUICK COUPLER, VALVE, HYDRAULIC LINE (35) - HYDRAULIC SYSTEMS

1

84418712

HOSE ASSY.,6.3mm ID x 595mm L

Pump to Coupler - Load Sen

1шт.

2

84418288

HOSE ASSY.,10mm ID x 650mm L

Pump to Coupler - Pressure

1шт.

3

86513024

TEE,3/4" - 16 ORB x 3/4" - 16 JIC x 3/4" - 16 JIC

ASSY, Incl 4, 5

1шт.

4

NSS

NOT SOLD SEPARAT

Tee, Incl in 3

1шт.

5

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

6

163335

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

ASSY, Incl 7, 8

1шт.

7

NSS

NOT SOLD SEPARAT

Tee, Incl in 6

1шт.

8

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
