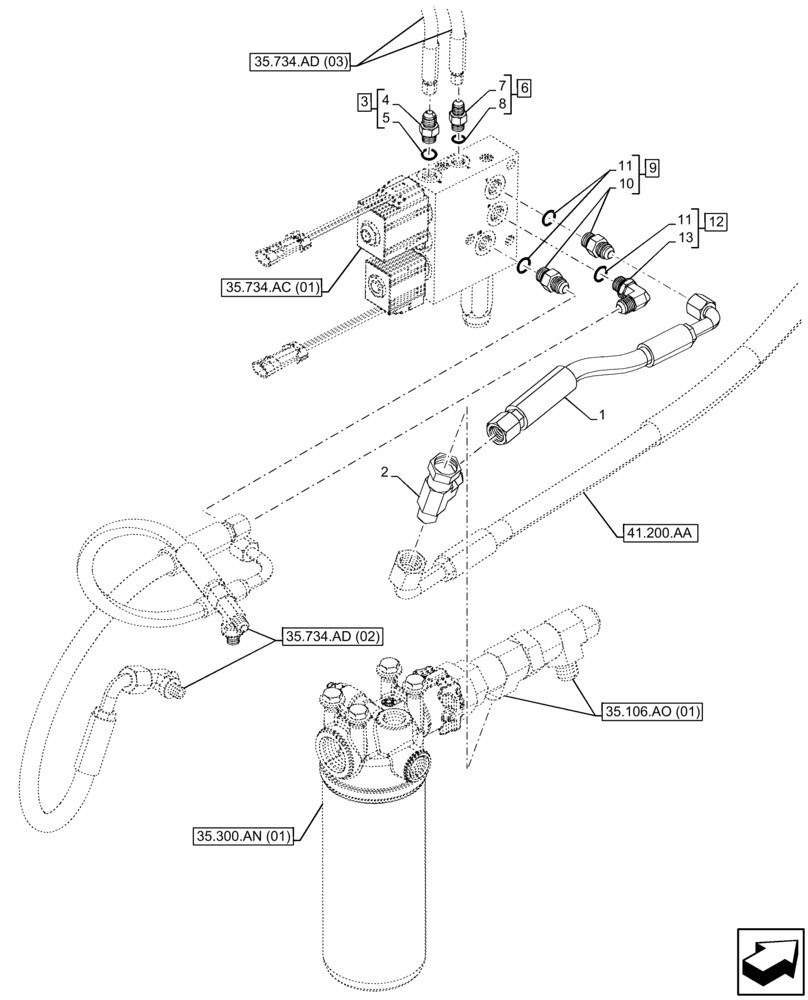

Запчасти Case 580N EP (35.734.AD[01]) - VAR - 423049 - QUICK COUPLER, VALVE, HYDRAULIC LINE (35) - HYDRAULIC SYSTEMS

1

47608227

HYDRAULIC HOSE,10mm ID x 310mm L

10mm ID x 310mm L, SAE 100R6, Coupler to Return

1шт.

2

86632549

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run x 3/4"-16 Br

1шт.

3

47765

HYD CONNECTOR,1/2"-20, 37º x 1/2"-20, O-Ring

ASSY, Incl 4, 5

1шт.

4

NSS

NOT SOLD SEPARAT

Connector, Incl in 3

1шт.

5

129270

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

1шт.

6

265235

HYD CONNECTOR,7/16" - 20 ORB x 7/16" - 20 JIC

ASSY, Incl 7, 8

1шт.

7

NSS

NOT SOLD SEPARAT

Connector, Incl in 6

1шт.

8

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

9

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

ASSY, Incl 10, 11

2шт.

10

NSS

NOT SOLD SEPARAT

Connector, Incl in 9

2шт.

11

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3шт.

12

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

ASSY, Incl 11, 13

1шт.

13

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 12

1шт.
