Запчасти Case 580N EP (35.734.AC[02]) - VAR - 423049 - QUICK COUPLER, VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS

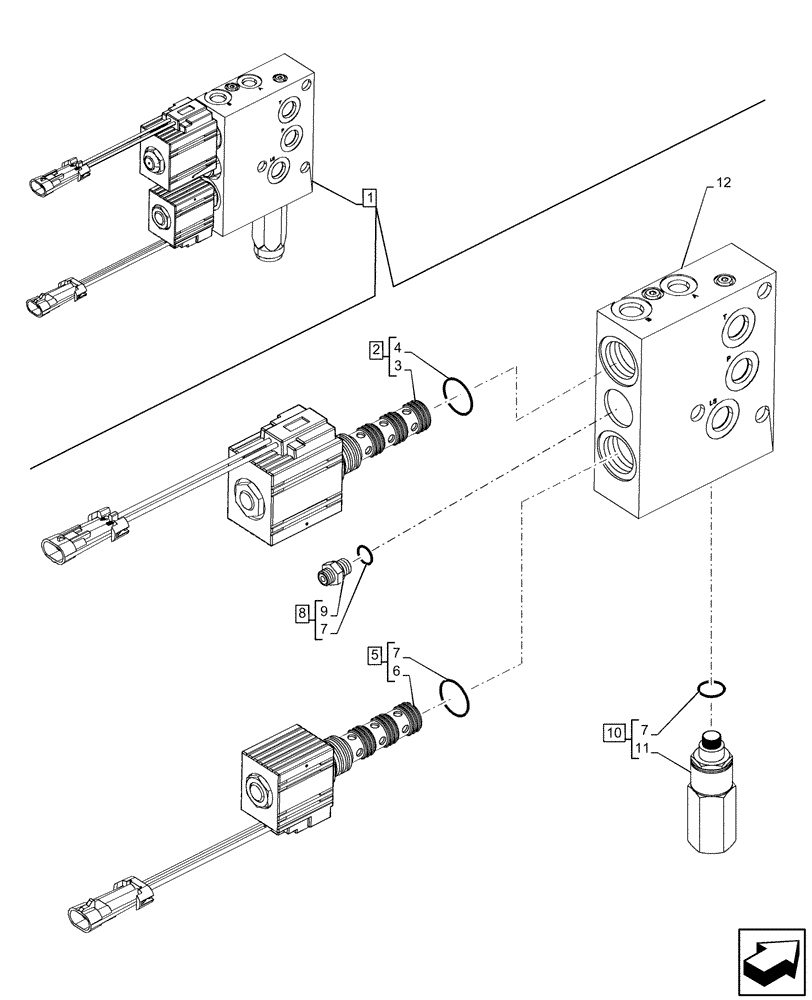

Схема запчастей Case 580N EP - (35.734.AC[02]) - VAR - 423049 - QUICK COUPLER, VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS
1
5
7
12
9
2
8
7
10
3
6
11
7
4

Артикул

Название

Примечание

Количество

1

87435909

SOLENOID VALVE

ASSY, Hydraulic Coupler, Incl 2 - 12

1шт.

2

87438021

SOLENOID VALVE

ASSY, Incl 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

Valve, Incl in 2

1шт.

4

87438024

SEAL KIT

4 Way Solenoid

1шт.

5

87438025

SOLENOID VALVE

ASSY, Incl 6, 7

1шт.

6

NSS

NOT SOLD SEPARAT

Valve, Incl in 5

1шт.

7

87438028

SEAL KIT

2 Way Solenoid

1шт.

8

87438029

VALVE, CHECK

ASSY, Incl 7, 9

1шт.

9

NSS

NOT SOLD SEPARAT

Valve, Incl in 8

1шт.

10

84200896

VALVE PRESSURE RELIE

ASSY, TLB Coupler, Incl 7, 11

1шт.

11

NSS

NOT SOLD SEPARAT

Valve, Incl in 10

1шт.

12

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

Выбрано товаров: 12
