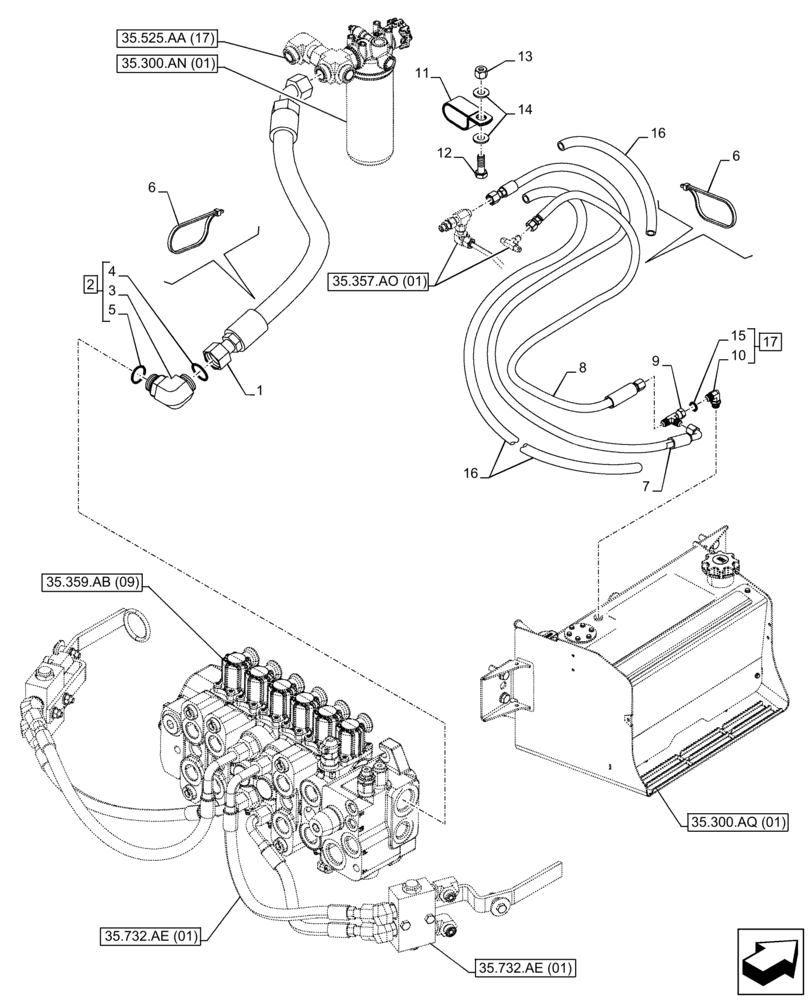

Запчасти Case 580N EP (35.732.AE[02]) - STABILIZER, CONTROLS, PILOT CONTROLS, LINES (35) - HYDRAULIC SYSTEMS

1

84534427

HOSE ASSY.,25mm ID x 1010mm L

Backhoe to Filter

1шт.

2

9846955

90 ELBOW,1-7/16"-12 ORFS x 1-5/16"-12 ORB

ASSY, Incl 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 2

1шт.

4

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

5

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

6

L18331

CABLE TIE,375.9mm L, Nylon, Black

5шт.

7

47621033

HYDRAULIC HOSE,10mm ID x 2090mm L

2090mm L, Pilot Control, Return

1шт.

8

47621008

HYDRAULIC HOSE,10mm ID x 2040mm L

2040mm L, Drain, Pilot Control

1шт.

9

129274

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

10

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 17

1шт.

11

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

1шт.

12

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

13

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

14

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

15

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

16

84325932

HOSE PROTECTION

2шт.

17

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

ASSY, Incl 10, 15

1шт.
