(35.732.AE[01]) - STABILIZER, CONTROLS, PILOT CONTROLS, LINES

Запчасти Case 580N EP (35.732.AE[01]) - STABILIZER, CONTROLS, PILOT CONTROLS, LINES (35) - HYDRAULIC SYSTEMS

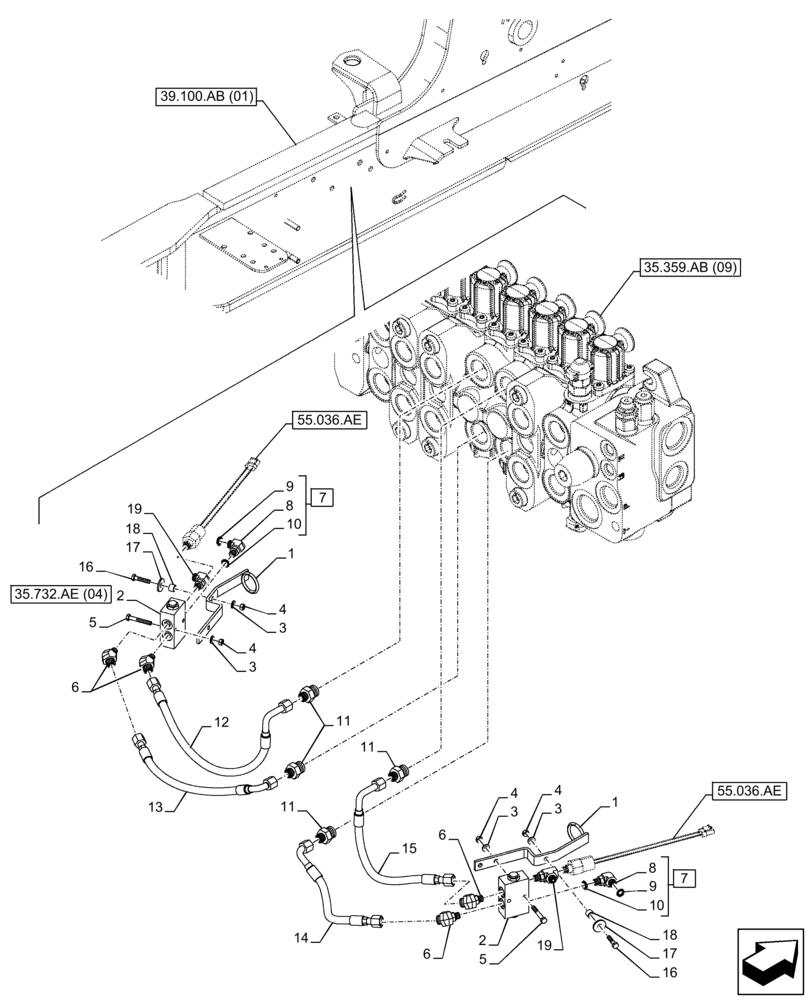

Схема запчастей Case 580N EP - (35.732.AE[01]) - STABILIZER, CONTROLS, PILOT CONTROLS, LINES (35) - HYDRAULIC SYSTEMS
7
3
10
8
35.732.ae (04)
11
18
16
17
4
16
6
9
55.036.ae
15
19
5
55.036.ae
13
7
6
19
9
3
14
12
6
17
2
18
11
11
4
39.100.ab (01)
5
10
1
4
2
8
1
4
35.359.ab (09)
3
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87450318

BRACKET

2шт.

2

85802820

CHECK VALVE

ASSY

2шт.

3

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

6шт.

4

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

6шт.

5

814-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 8.8

4шт.

6

201-321

ELBOW,45 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB

4шт.

7

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

ASSY, Incl 8 (Qty 1), 9 (Qty 1), 10 (Qty 1)

2шт.

8

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 7

2шт.

9

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

10

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

11

87582906

HYD CONNECTOR,13/16" - 16 ORFS x 1-1/16" - 12 ORB

4шт.

12

84256421

HYD TUBE,10mm ID x 410mm L

10mm ID x 410mm L

1шт.

13

84256420

HYD TUBE,10mm ID x 529mm L

10mm ID x 529mm L

1шт.

14

84256418

HYD TUBE,10mm ID x 455mm L

10mm ID x 455mm L

1шт.

15

84256419

HYD TUBE,10mm ID x 355mm L

10mm ID x 355mm L

1шт.

16

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

17

87687101

WASHER,10.65mm ID x 31mm OD x 3.3mm Thk

2шт.

18

87437840

SPACER,11.5mm L

2шт.

19

84253759

RUN TEE

2шт.
