(35.726.AU[05]) - EXTENDABLE DIPPER, AUXILIARY HYDRAULIC, SEVERE COLD WEATHER

Запчасти Case 580N EP (35.726.AU[05]) - EXTENDABLE DIPPER, AUXILIARY HYDRAULIC, SEVERE COLD WEATHER (35) - HYDRAULIC SYSTEMS

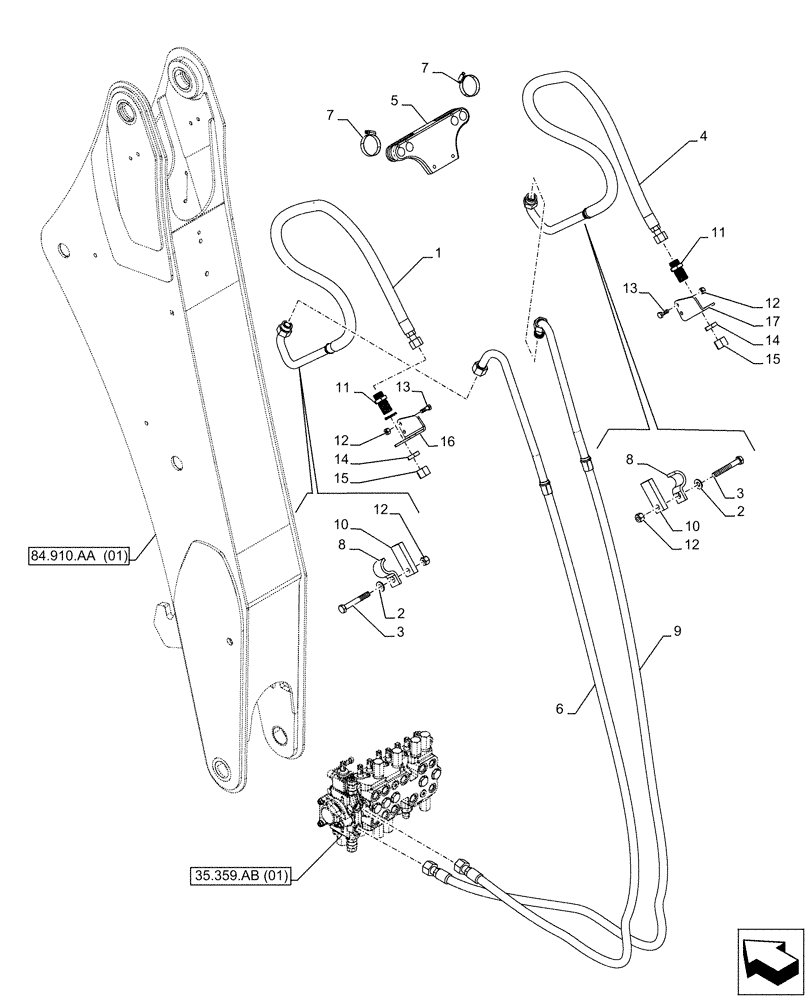

Схема запчастей Case 580N EP - (35.726.AU[05]) - EXTENDABLE DIPPER, AUXILIARY HYDRAULIC, SEVERE COLD WEATHER (35) - HYDRAULIC SYSTEMS
84.910.aa (01)
13
3
12
16
11
4
14
12
11
15
9
12
3
6
10
17
13
2
15
2
14
7
8
12
8
1
5
10
7
35.359.ab (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47810087

HYDRAULIC HOSE,19mm ID x 1656mm L

19mm ID x 1656mm L, ASSY, Extendable Valve to Auxiliary Port A

1шт.

For Severe Cold Weather

1шт.

2

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

3

83931335

BOLT,Hex, M10 x 1.5 x 75mm, Cl 8.8

2шт.

4

47810083

HYDRAULIC HOSE,19mm ID x 1656mm L

19mm ID x 1656mm L, ASSY, Extendable Valve to Auxiliary Port B

1шт.

For Severe Cold Weather

1шт.

5

84359766

SUPPORT

1шт.

6

47810092

HYDRAULIC HOSE,19mm ID x 2756mm L

19mm ID x 2756mm L, ASSY, Extendable Valve to Auxiliary Port A

1шт.

For Severe Cold Weather

1шт.

7

214-3156

HOSE CLAMP,2-3/4" - 3-5/8", HD Worm

2шт.

8

242459A1

SHIN

2шт.

9

47810089

HYDRAULIC HOSE,19mm ID x 2851mm L

19mm ID x 2851mm L, ASSY, Extendable Valve to Auxiliary Port B

1шт.

For Severe Cold Weather

1шт.

10

84299978

PLATE

2шт.

11

201-140

HYD CONNECTOR,1-3/16" - 12, Blkhd, ORFS

2шт.

12

412141

NUT,M10 x 1.5, Cl 8

6шт.

13

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

4шт.

14

218-1249

BHD LOCK NUT,1-3/16" - 12

2шт.

15

201-907

CAP,1-3/16" - 12 ORFS

2шт.

16

84305006

BRACKET

LH

1шт.

17

84305054

BRACKET

RH

1шт.
