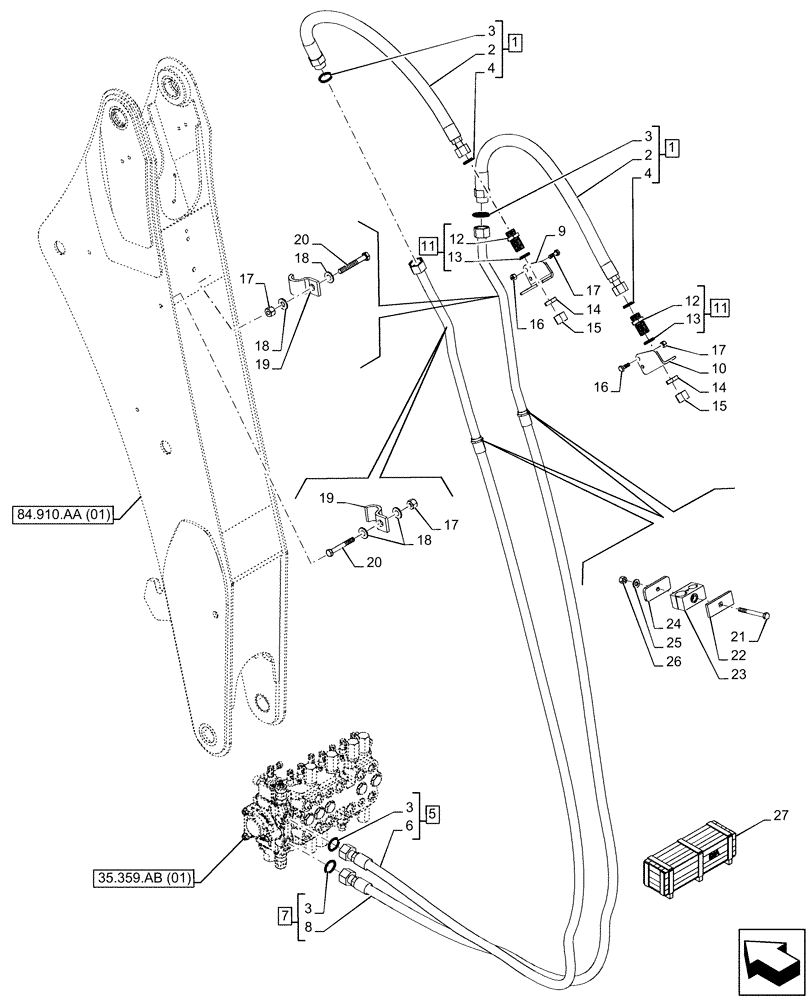

Запчасти Case 580N EP (35.726.AU[01]) - STANDARD DIPPER, AUXILIARY HYDRAULIC (35) - HYDRAULIC SYSTEMS

1

84322596

HOSE,19.05mm ID x 906mm L, SAE 100R16

ASSY, Standard Auxiliary, Incl 2 (Qty 1), 3 (Qty 1), 4 (Qty 1)

2шт.

2

NSS

NOT SOLD SEPARAT

Hose, Incl in 1

1шт.

3

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

4шт.

4

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

5

84280511

HYD TUBE,19mm ID x 2759mm L

19mm ID x 2759mm L, ASSY, Standard Valve to Auxiliary Port A, Incl 3 (Qty 1), 6

1шт.

6

NSS

NOT SOLD SEPARAT

Tube, Incl in 5

1шт.

7

84280510

HYD TUBE,19mm ID x 2805mm L

19mm ID x 2805mm L, ASSY, Standard Valve to Auxiliary Port B, Incl 3 (Qty 1), 8

1шт.

8

NSS

NOT SOLD SEPARAT

Tube, Incl in 8

1шт.

9

84305006

BRACKET

LH

1шт.

10

84305054

BRACKET

RH

1шт.

11

201-140

HYD CONNECTOR,1-3/16" - 12, Blkhd, ORFS

ASSY, Incl 12 (Qty 1), 13 (Qty 1)

2шт.

12

NSS

NOT SOLD SEPARAT

Connector, Incl in 11

2шт.

13

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

14

218-1249

BHD LOCK NUT,1-3/16" - 12

2шт.

15

201-907

CAP,1-3/16" - 12 ORFS

2шт.

16

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

4шт.

17

412141

NUT,M10 x 1.5, Cl 8

6шт.

18

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

4шт.

19

242459A1

SHIN

2шт.

20

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

21

120108

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8, Full Thd

2шт.

22

84283495

SECURING STRAP

2шт.

23

87000146

CLAMP

2шт.

24

84342644

PLATE

2шт.

25

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

26

412250

NUT,M8 x 1.25, Cl 8

2шт.

27

47674141

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Mechanical Control, Standard Dipper, Incl 1, 2, 5 - 12, 14 - 16, 19 - 24, 26

1шт.

Valid for 580N EP Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

27

47674176

CONSTRUCTION DIA

Uni-Dir, Mechanical Control, Standard Dipper, Incl 1, 2, 5 - 12, 14 - 16, 18 - 24, 26

1шт.

Valid for 580N EP Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

27

84546980

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Mechanical Control, Standard Dipper, Incl 1, 2, 5 - 12, 14 - 16, 19 - 24, 26

1шт.

Valid for 580N, 580SN, 580SN WT Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

27

47358915

CONSTRUCTION DIA

Uni-Dir, Pilot Control, Standard Dipper, Incl 1, 2, 5 - 12, 14 - 16, 18 - 26

1шт.

Valid for 580SN, 580SN WT Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

27

84546986

CONSTRUCTION DIA

Uni-Dir, Mechanical Control, Standard Dipper, Incl 1, 2, 5 - 12, 14 - 22, 24, 25

1шт.

Valid for 580N, 580SN, 580SN WT Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

27

47501543

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Pilot Control, Standard Dipper, Incl 1, 2, 5 - 12, 14 - 16, 19 - 24, 26

1шт.

Valid for 580SN, 580SN WT Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

27

47501545

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Pilot Control, Standard Dipper, Incl 1, 2, 5 - 12, 14 - 16, 19 - 26

1шт.

Valid for 580N EP, 580N Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

27

47520386

CONSTRUCTION DIA

Convert Standard Dipper to Extendable Dipper W/ CASE C, Incl 21 - 26

1шт.

Valid for 580N EP, 580N, 580SN, 580SN WT Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

27

47520390

CONSTRUCTION DIA

Convert Standard Dipper to Extendable Dipper, Hand Swing Control, Incl 21 - 26

1шт.

Valid for 580N EP, 580N, 580SN, 580SN WT Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
