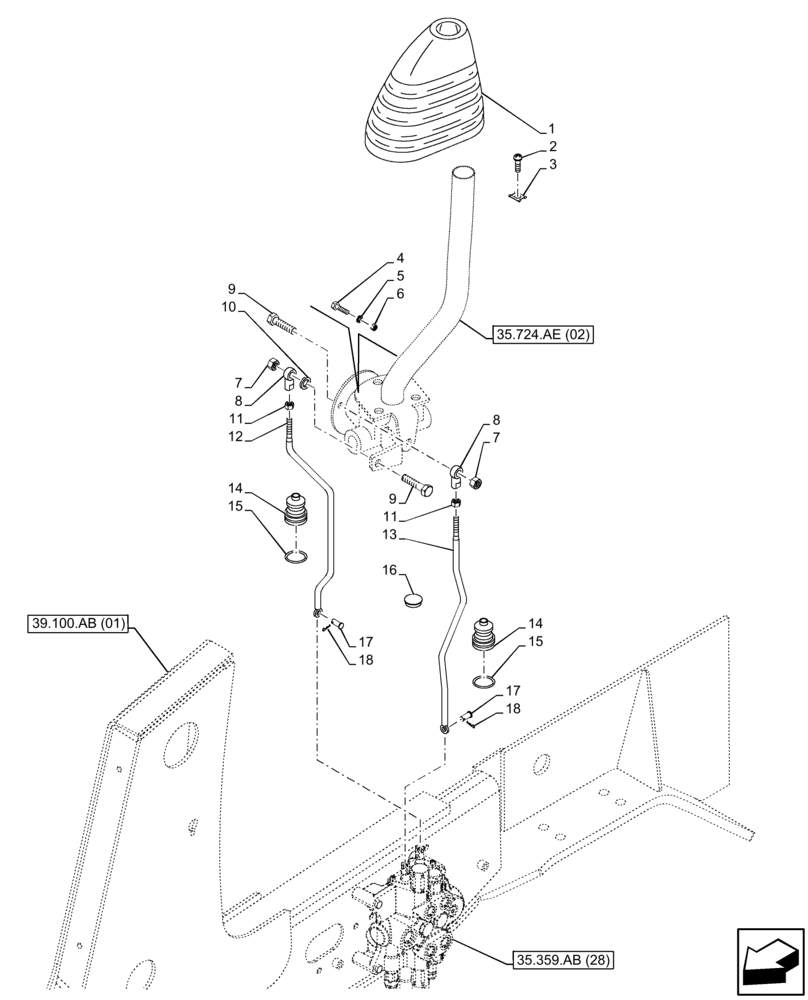

Запчасти Case 580N EP (35.724.AE[01]) - LOADER, CONTROL VALVE, LEVER (35) - HYDRAULIC SYSTEMS

1

84498309

BOOT

1шт.

2

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

1шт.

3

131-121

SPRING NUT,Tinn, U, #10-24

1шт.

4

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

3шт.

5

87713130

WASHER,6.85mm ID x 12.75mm OD x 1.8mm Thk

3шт.

6

829-1406

NUT,Hex, M6 x 1, Cl 10.9

3шт.

7

232-4246

NUT,3/8"-16, GC

2шт.

8

87382812

BALL JOINT HEAD,3/8" - 24

2шт.

9

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

10

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

1шт.

11

425-116

NUT,3/8" - 24, Gr 5

2шт.

12

87664422

ROD

Loader Control Lift

1шт.

13

87664425

ROD

Loader Dump

1шт.

14

132931A1

BOOT

2шт.

15

189109A1

SPRING,Compression, 42mm OD

2шт.

16

353-422

PLUG,Dome, 1.250" hole, Nylon

1шт.

17

D149287

PIN,7.9mm OD x 26.72mm L

2шт.

18

432-612

COTTER PIN,3/32" x 3/4"

2шт.
