(35.723.AB[04]) - VAR - 423079, 742242, 747539, 747657, 747863 - BUCKET CYLINDER, LINES

Запчасти Case 580N EP (35.723.AB[04]) - VAR - 423079, 742242, 747539, 747657, 747863 - BUCKET CYLINDER, LINES (35) - HYDRAULIC SYSTEMS

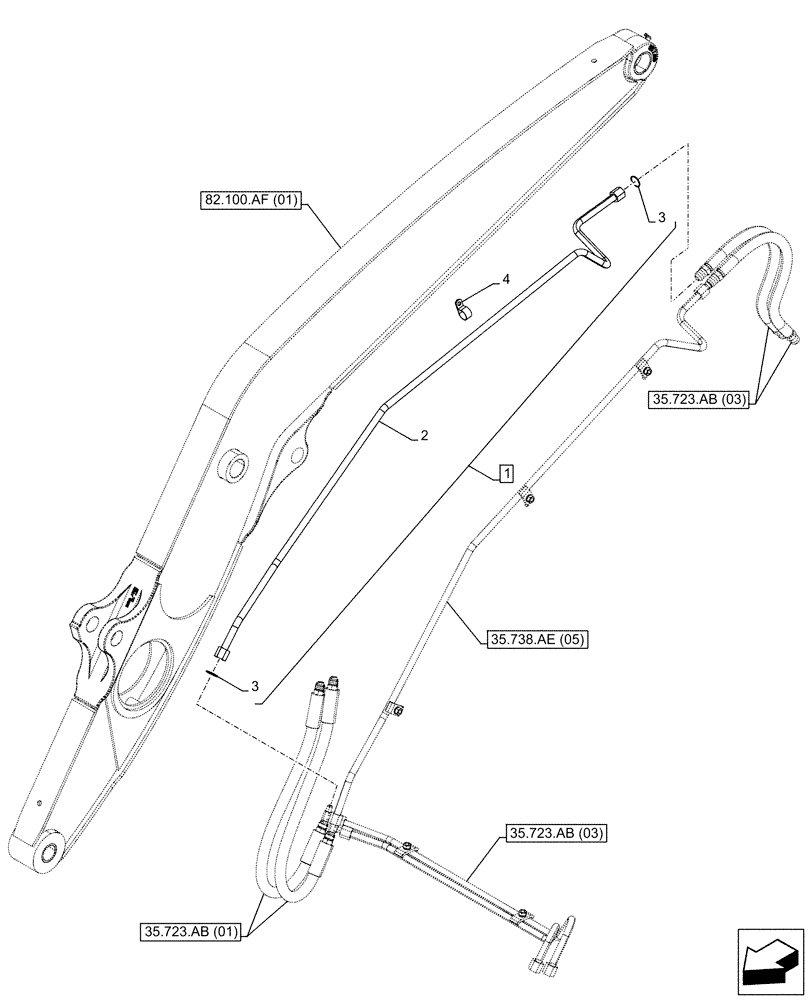

Схема запчастей Case 580N EP - (35.723.AB[04]) - VAR - 423079, 742242, 747539, 747657, 747863 - BUCKET CYLINDER, LINES (35) - HYDRAULIC SYSTEMS
35.723.ab (03)
3
1
3
2
4
35.723.ab (01)
82.100.af (01)
35.738.ae (05)
35.723.ab (03)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87716480

HYD TUBE

ASSY, Bucket, Port A, 1619mm L, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Tube, Incl in 1

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

4

515-23286

CLAMP,1-1/8", Insul, 3/8" Bolt

1шт.

Выбрано товаров: 4
