Запчасти Case 580N EP (35.723.AB[03]) - BUCKET, CYLINDER, LINE (35) - HYDRAULIC SYSTEMS

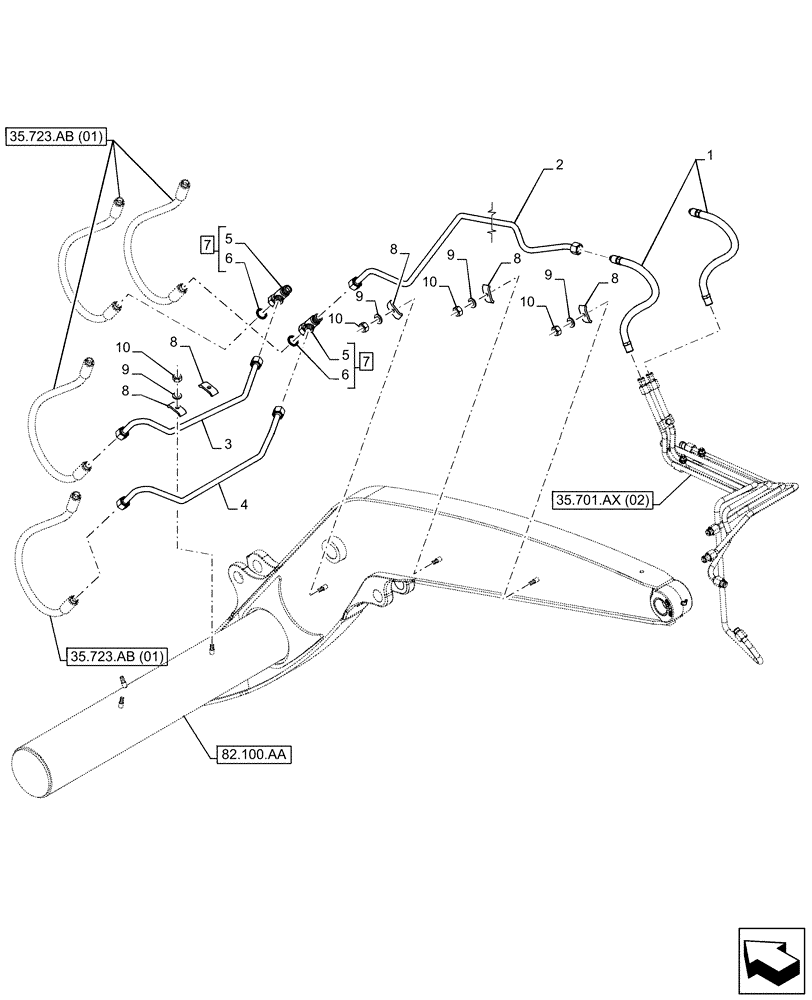

Схема запчастей Case 580N EP - (35.723.AB[03]) - BUCKET, CYLINDER, LINE (35) - HYDRAULIC SYSTEMS
3
82.100.aa
8
35.723.ab (01)
7
9
2
4
35.701.ax (02)
10
9
1
9
35.723.ab (01)
9
6
10
10
8
6
5
7
5
8
8
10
8

Артикул

Название

Примечание

Количество

1

87429287

HYDRAULIC HOSE,7/8" - 14 JIC, 710mm L

Loader Arm Upright

2шт.

2

87716482

HYD TUBE

Bucket Port B

1шт.

3

196813A1

TUBE

Crossover Port A

1шт.

4

196815A1

TUBE

Crossover Port B

1шт.

5

NSS

NOT SOLD SEPARAT

Tee, Incl in 7

2шт.

6

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

7

86513011

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

ASSY, Incl 5 (Qty 1), 6 (Qty 1)

2шт.

8

D138055

CLAMP

5шт.

9

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

5шт.

10

86500689

NUT,M10 x 1.5, Cl 10

5шт.

Выбрано товаров: 10
