Запчасти Case 580N EP (35.723.AB[01]) - BUCKET CYLINDER, LINES (35) - HYDRAULIC SYSTEMS

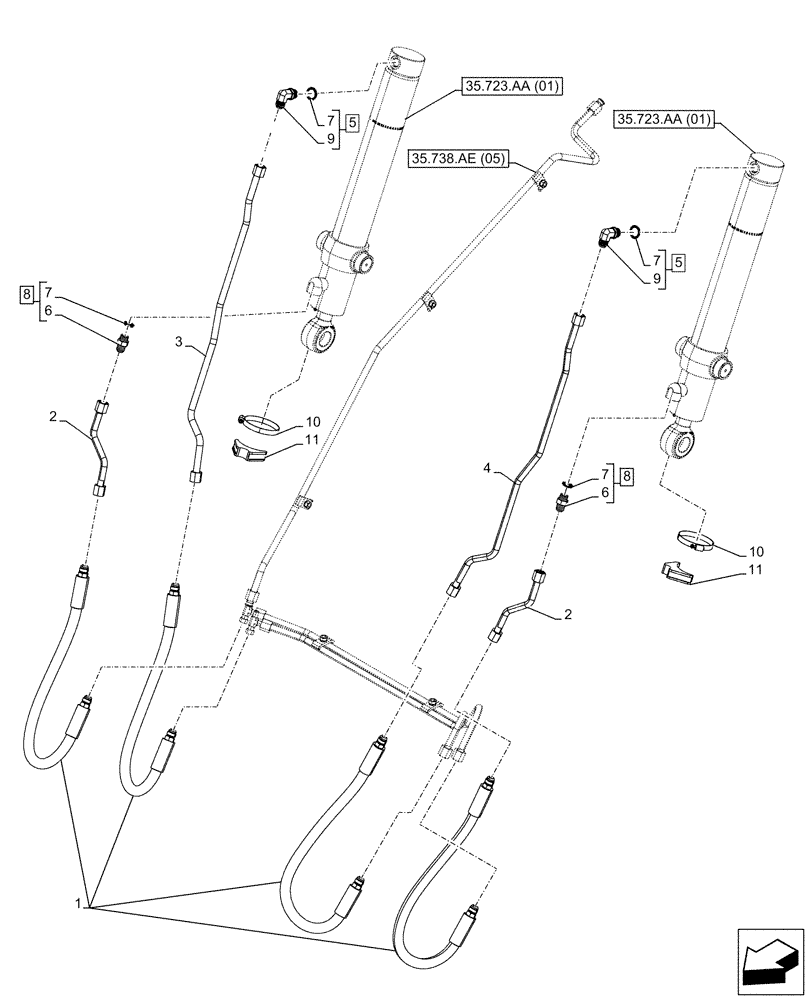

Схема запчастей Case 580N EP - (35.723.AB[01]) - BUCKET CYLINDER, LINES (35) - HYDRAULIC SYSTEMS
35.738.ae (05)
6
5
7
7
1
8
10
7
9
9
11
6
4
2
2
7
5
8
11
3
10
35.723.aa (01)
35.723.aa (01)

Артикул

Название

Примечание

Количество

1

371031A1

HYDRAULIC HOSE,3/8" ID x 940mm L

Loader Bucket Cylinder

4шт.

2

87316049

RIGID TUBE

Bucket Cylinder Rod

2шт.

3

84311927

TUBE

RH, Bucket Cylinder

1шт.

4

84311925

TUBE

LH, Bucket Cylinder

1шт.

5

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

ASSY, Incl 7, 9

2шт.

6

NSS

NOT SOLD SEPARAT

Connector, Incl in 8

2шт.

7

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

4шт.

8

87301330

HYD CONNECTOR,7/8" - 14 ORB x 7/8" - 14 JIC

Assy, Incl 6 (Qty 1) , 7 (Qty 1)

2шт.

9

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 5

2шт.

10

86625034

HOSE CLAMP,90.4mm - 114.3mm, Worm Gear

2шт.

11

L79937

SADDLE

2шт.

Выбрано товаров: 11
