Запчасти Case 580N EP (35.723.AA[03]) - VAR - 742433, 747863 - LOADER BUCKET, CYLINDER (35) - HYDRAULIC SYSTEMS

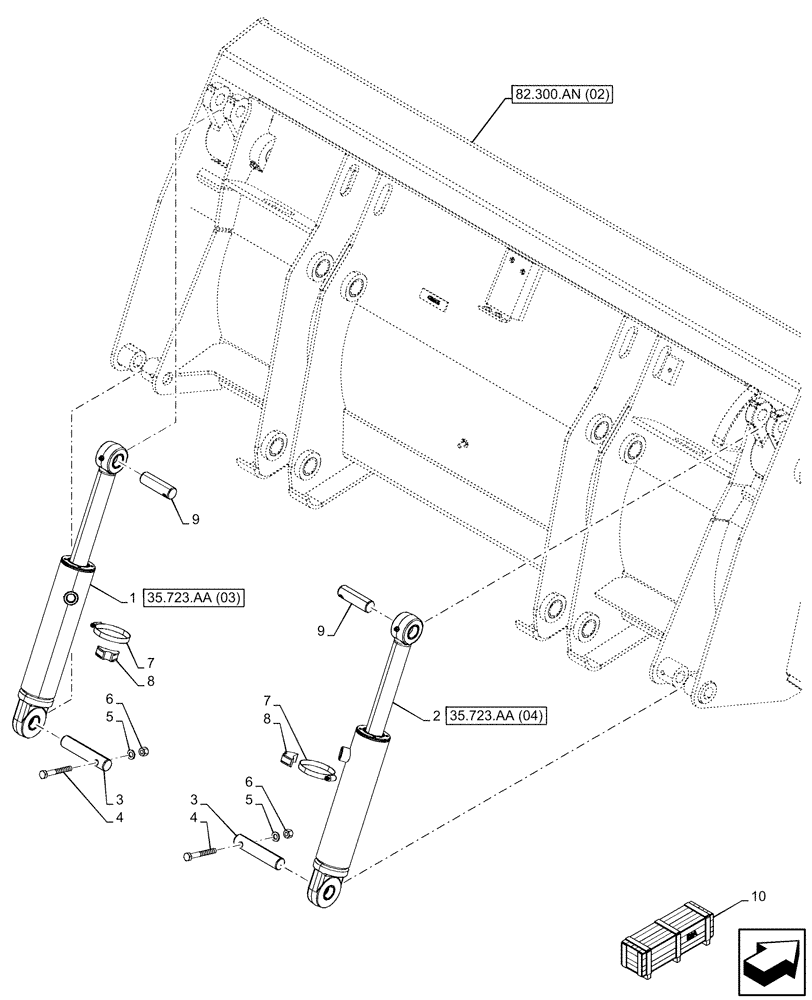

Схема запчастей Case 580N EP - (35.723.AA[03]) - VAR - 742433, 747863 - LOADER BUCKET, CYLINDER (35) - HYDRAULIC SYSTEMS
35.723.aa (03)
7
9
6
4
8
3
9
3
5
4
7
5
1
8
6
2
10
82.300.an (02)
35.723.aa (04)

Артикул

Название

Примечание

Количество

1

87455458

HYDRAULIC CYLINDER,Double Acting, 44.4mm Rod, 76.2mm Bore, 230.6mm Stroke

Clam LH 76.2, ASSY

1шт.

2

87455459

HYDRAULIC CYLINDER,Double Acting, 44.4mm Rod, 76.2mm Bore, 230.6mm Stroke

Clam RH 76.2, ASSY

1шт.

3

D51393

PIN,31.72mm OD x 152.4mm L

2шт.

4

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

2шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

7

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

2шт.

8

47591143

CLAMP,3/4" Clamping tube

2шт.

9

D51392

PIN,31.72mm OD x 101.6mm L

2шт.

10

47542235

CONSTRUCTION DIA

Bucket 82 Inch 4 in 4, Incl 1, 2

1шт.

Valid for 580N EP, 580N, 580SN Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

10

84571019

BUCKET

Bucket 82 Inch 4 in 4, Incl 1 - 4, 7 - 9

1шт.

Valid for 580N EP, 580N, 580SN Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

10

47553020

CONSTRUCTION DIA

Bucket 93 Inch 4 in 1, Incl 1 - 4, 7 - 9

1шт.

Valid for 580SN WT Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

10

47540572

CONSTRUCTION DIA

Bucket 93 Inch 4 in 1, Incl 1 - 4, 7 - 9

1шт.

Valid for 590SN Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

10

84571018

BUCKET

Bucket 93 Inch 4 in 1, Incl 1 - 4, 7 - 9

1шт.

Valid for 580SN WT, 590SN Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 24
