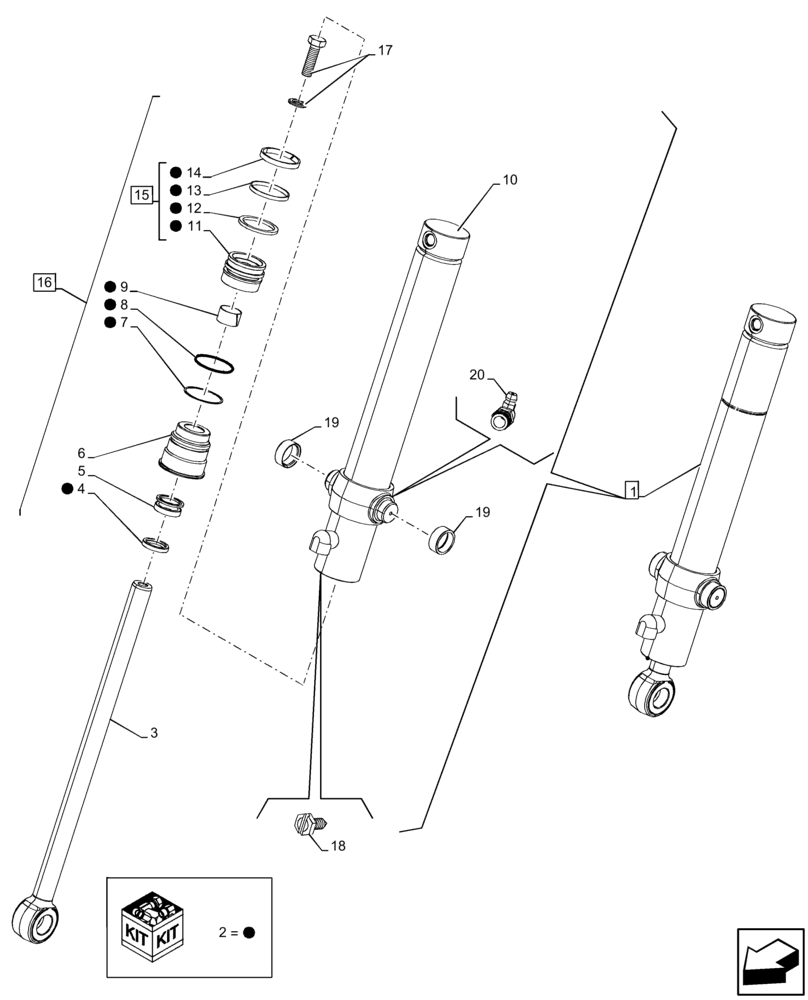

Запчасти Case 580N EP (35.723.AA[02]) - LOADER BUCKET, CONTROL, CYLINDER (35) - HYDRAULIC SYSTEMS

1

87624263

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 522.3mm Stroke

Assy, Incl 2 - 20

2шт.

2

1543256C1

SEAL KIT,38.1mm Rod, 76.2mm Bore

Assy, Incl in 4, 7, 8, 9, 12, 14

1шт.

3

87609666

PISTON ROD

1шт.

4

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

1шт.

5

1542874C1

SEAL KIT,38.1mm Rod

2шт.

6

297280A1

GLAND

1шт.

7

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

2шт.

8

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

1шт.

9

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

1шт.

10

NSS

NOT SOLD SEPARAT

Incl in 1

2шт.

11

G108518

PISTON

1шт.

12

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

2шт.

13

G100443

SEAL,67.9mm ID x 77.1mm OD x 6.8mm Thk

1шт.

14

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

2шт.

15

G108517

PISTON ASSY

1шт.

16

87609668

JACK PISTON

Assy, Incl in 4, 5, 6,7, 8, 9 ,11, 12, 13, 14

1шт.

17

86982435

SPECIAL BOLT,3/4" - 16 x 2-1/2"

1шт.

18

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

19

G108512

BUSHING,41.2mm ID x 50mm OD x 18.7mm L

2шт.

20

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.
