Запчасти Case 580N EP (35.703.AG[03]) - STABILIZER CYLINDER, LH, COMPONENTS (35) - HYDRAULIC SYSTEMS

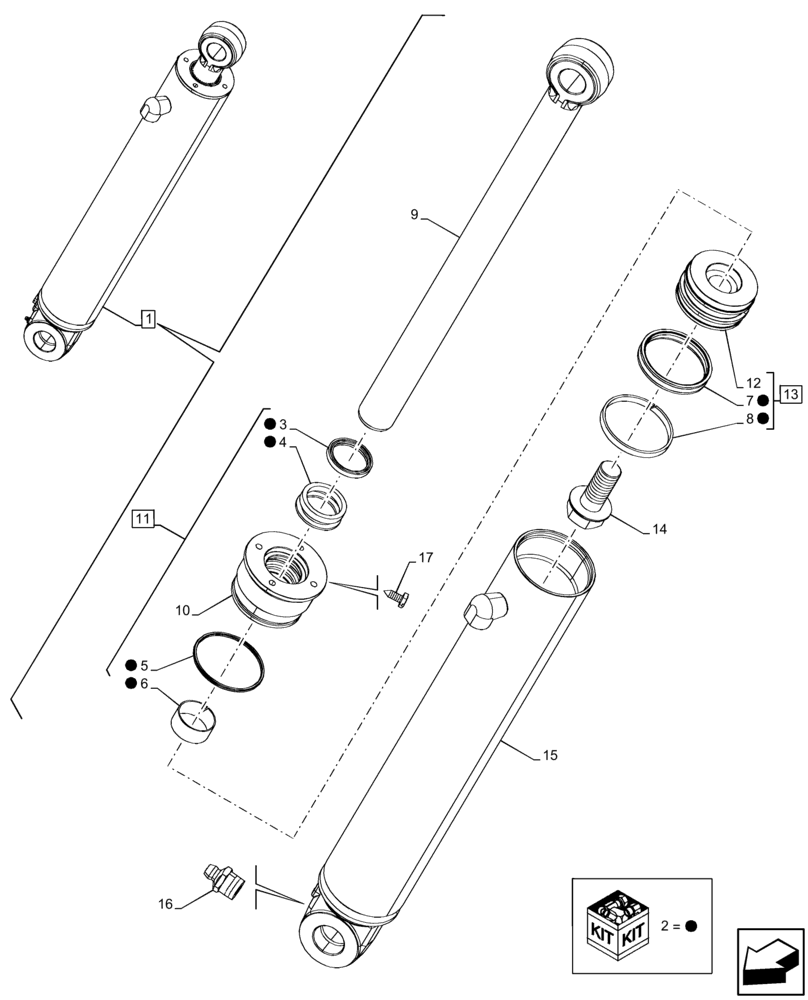

Схема запчастей Case 580N EP - (35.703.AG[03]) - STABILIZER CYLINDER, LH, COMPONENTS (35) - HYDRAULIC SYSTEMS
9
12
2
8
2
10
2
2
4
2
2
6
15
14
17
2
3
13
11
7
5
1
16

Артикул

Название

Примечание

Количество

1

47514465

HYDRAULIC CYLINDER,50.8mm Rod, 101.6mm Bore, 553.3mm Stroke

Stabilizer LH, 101.6 x 50.8mm, ASSY, Incl 2 - 17

1шт.

2

47514468

SEAL KIT,50.8mm Rod, 101.6mm Bore

Seal Repair, 101.6 x 50.8mm, ASSY, Incl 3 - 8

1шт.

3

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

1шт.

4

1542876C1

SEAL KIT,50.8mm Rod

1шт.

5

87615482

SEAL,93.85mm ID x 104.57mm OD x 4.85mm Thk

1шт.

6

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

1шт.

7

87715785

SEAL,101.6mm OD

1шт.

8

G100448

RING,101.6mm OD, Ext

1шт.

9

123726A1

PISTON ROD

1шт.

10

NSS

NOT SOLD SEPARAT

Gland, Incl in 11

1шт.

11

47516857

PISTON

ASSY, Incl 3 - 6, 10

1шт.

12

NSS

NOT SOLD SEPARAT

Piston, incl in 13

1шт.

13

47513229

PISTON ASSY

ASSY, Incl 7, 8, 12

1шт.

14

86982441

SPECIAL BOLT,Hex, 12, 1 1/4 x 3"

1шт.

15

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

17

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

Выбрано товаров: 17
