(35.703.AG[01]) - STABILIZER CYLINDER

Запчасти Case 580N EP (35.703.AG[01]) - STABILIZER CYLINDER (35) - HYDRAULIC SYSTEMS

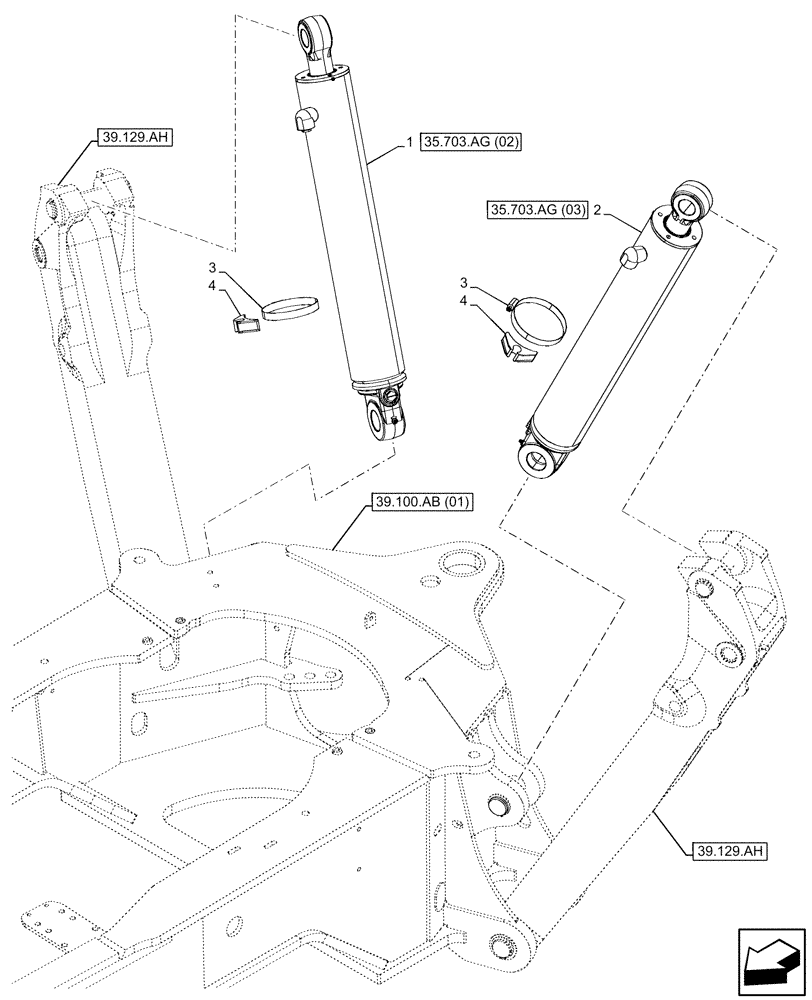

Схема запчастей Case 580N EP - (35.703.AG[01]) - STABILIZER CYLINDER (35) - HYDRAULIC SYSTEMS
39.129.ah
3
1
4
3
4
2
35.703.ag (03)
39.100.ab (01)
35.703.ag (02)
39.129.ah
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47514467

HYDRAULIC CYLINDER,50.8mm Rod, 101.6mm Bore, 553.3mm Stroke

Stabilizer RH, 101.6 x 50.8mm, ASSY

1шт.

2

47514465

HYDRAULIC CYLINDER,50.8mm Rod, 101.6mm Bore, 553.3mm Stroke

Stabilizer LH, 101.6 x 50.8mm, ASSY

1шт.

3

214-3188

HOSE CLAMP,4-3/4" - 5-5/8", HD Worm

2шт.

4

D142787

SPACER

2шт.

Выбрано товаров: 4
