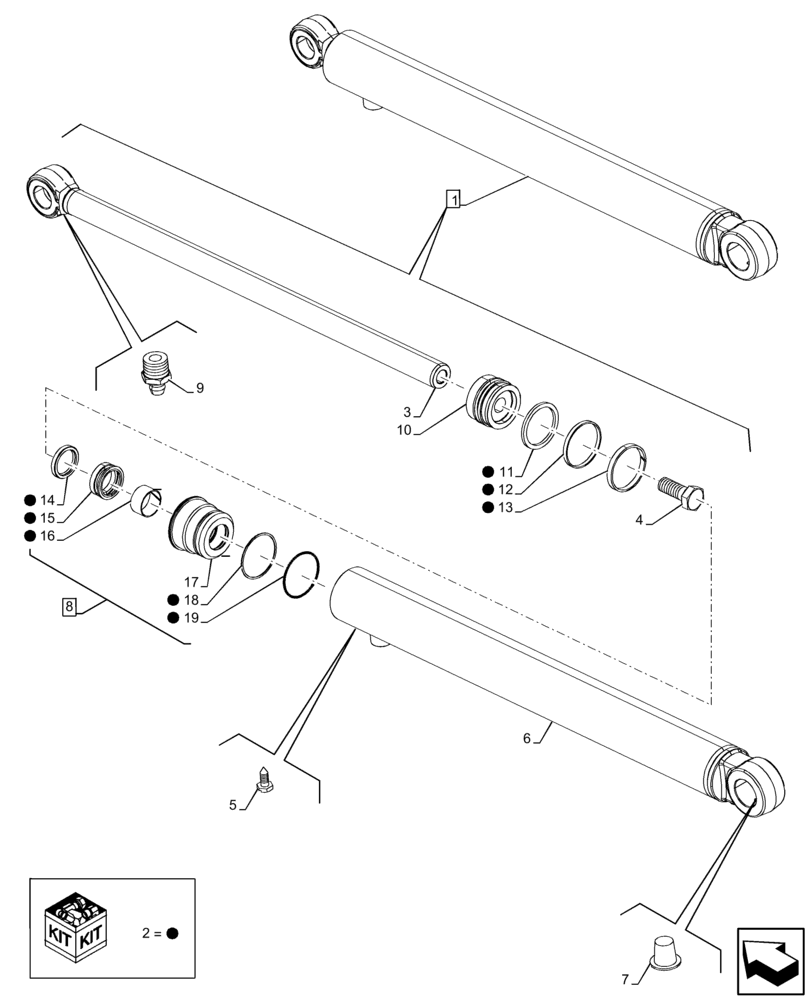

Запчасти Case 580N EP (35.701.CB[02]) - LIFT CYLINDER, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

87384876

LIFT CYLINDER,Double Acting, 44.4mm Rod, 766mm Stroke

ASSY, Incl 2 - 19

1шт.

1

87384876R

REMAN-HYD CYLINDER

1шт.

1

87384876C

CORE-HYD CYLINDER

Return Number

1шт.

2

86982375

SEAL KIT

Incl, 11, 12, 13, 14 , 15, 16, 18, 19

1шт.

3

133083A1

PISTON ROD

1шт.

4

86982437

BOLT,Sems, Hex, 1" - 14 x 2.50"

1шт.

5

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

6

NSS

NOT SOLD SEPARAT

Tube, Incl in 1

1шт.

7

353-4

PLUG,Cap, .366" OD

1шт.

8

1542969C1

GLAND

ASSY, Incl 14, 15, 16, 17, 18, 19

1шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

10

135161A1

PISTON,82.07mm Bore, 44.5mm Rod, 50.65mm W

1шт.

11

S109444

RING,Square, 5.28mm Thk x 68.96mm ID

1шт.

12

S109443

SEAL,78.9mm ID x 83.5mm OD x 6.8mm Thk

1шт.

13

S109445

RING,82.55mm OD, Ext

1шт.

14

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

1шт.

15

1542875C1

SEAL KIT,44.4mm Rod

1шт.

16

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

1шт.

17

1980321C3

GLAND

1шт.

18

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

1шт.

19

238-5233

O-RING,0.139" Thk x 2.859" ID, -233, Cl 5, 75 Duro

1шт.
