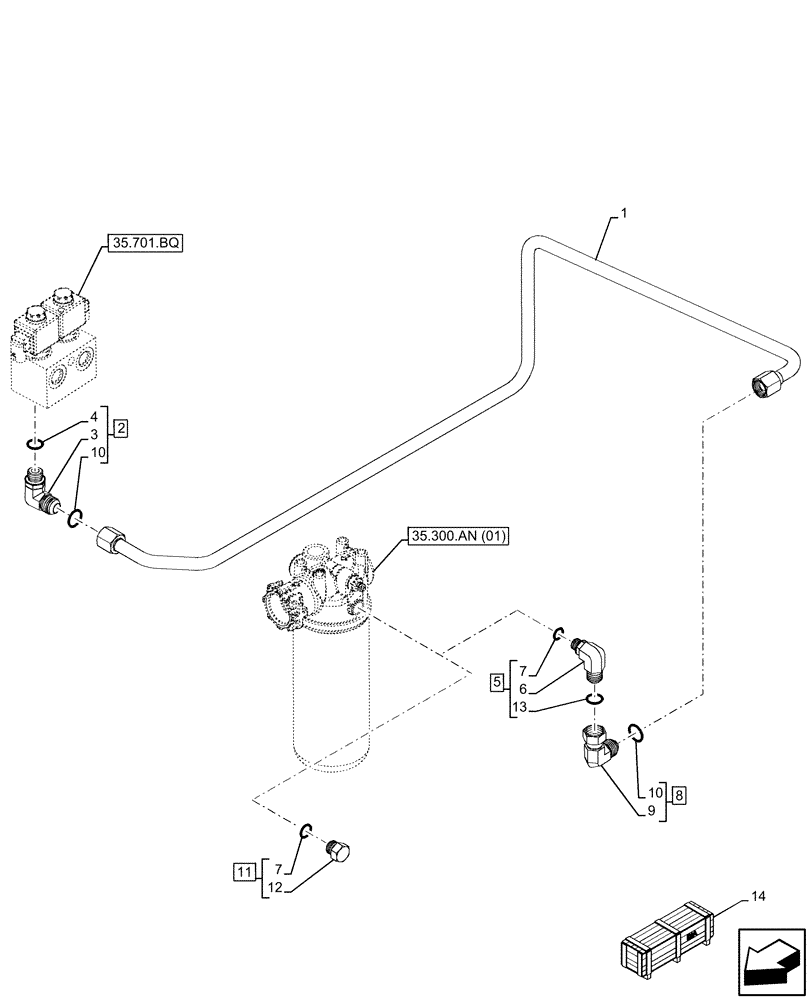

Запчасти Case 580N EP (35.701.BR[07]) - VAR - 423090, 423098 - RIDE CONTROL, VALVE, HYDRAULIC LINE, TANK (35) - HYDRAULIC SYSTEMS

1

47606024

HYD TUBE

Ride Control to Tank

1шт.

2

86527

90 ELBOW,7/8" - 14 JIC x 3/4" - 16 ORB

ASSY, Incl 3, 4, 10 (Qty 1)

1шт.

3

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 2

1шт.

4

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

5

218-5600

ELBOW,90 Degree, 7/8"-14, 37 Degree x 3/4"-16, O-Ring

ASSY, Incl 6, 7 (Qty 1), 13

1шт.

6

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 5

1шт.

7

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

8

182977

90 ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

ASSY, Incl 9, 10 (Qty 1)

1шт.

9

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 8

1шт.

10

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

11

76349

PLUG,9/16" - 18 ORB

ASSY, Incl 7 (Qty 1), 12

1шт.

Var. X20236X, Less Ride Control

1шт.

12

NSS

NOT SOLD SEPARAT

Plug, Incl in 11

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

14

47676531

CONSTRUCTION DIA

Standard Ride Control 2WD, Incl 1 - 3, 8

1шт.

Valid for 580N EP Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

14

47677202

CONSTRUCTION DIA

Auto Ride Control, Standard Transmission, Incl 1 - 3, 8

1шт.

Valid for 580N EP Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
