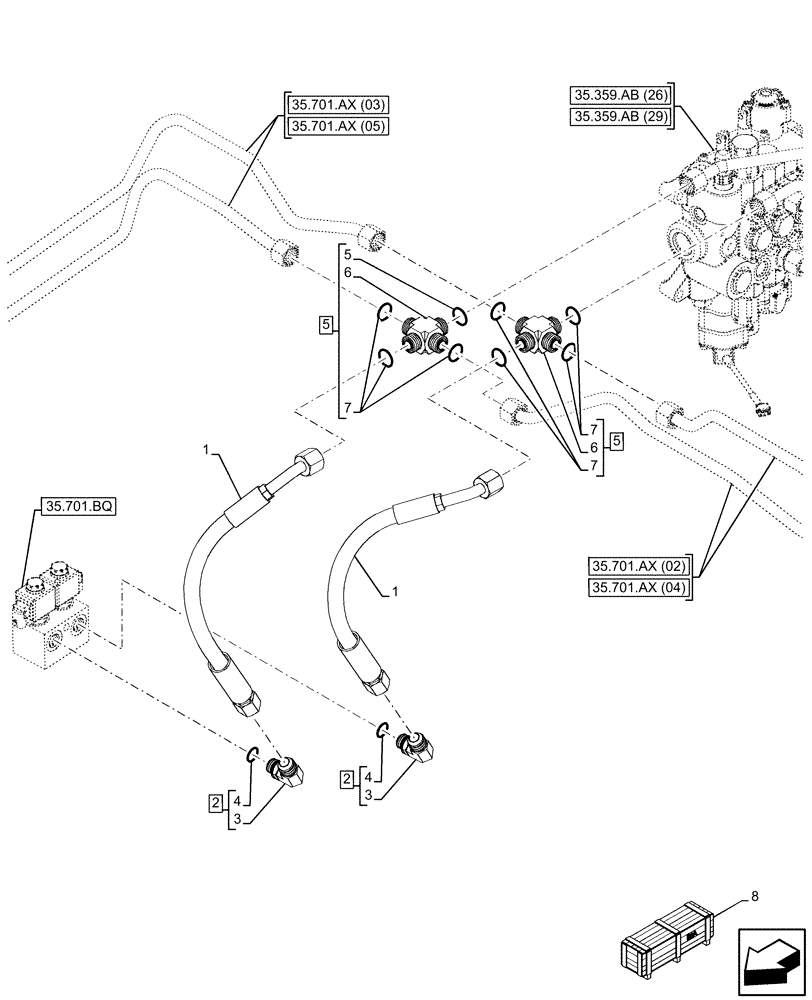

Запчасти Case 580N EP (35.701.BR[06]) - VAR - 423098 - RIDE CONTROL, VALVE, HYDRAULIC LINE, 2WD (35) - HYDRAULIC SYSTEMS

1

47606038

HYDRAULIC HOSE,12.5mm ID x 455mm L

Ride Control P1 and P2

2шт.

2

86527

90 ELBOW,7/8" - 14 JIC x 3/4" - 16 ORB

ASSY, Incl 3 (Qty 1), 4 (Qty 1)

2шт.

3

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 2

2шт.

4

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

5

86513044

UNION CROSS,7/8" - 14 JIC x 7/8" - 14 JIC x 7/8" - 14 JIC x 7/8" - 14 JIC

ASSY, Incl 6 (Qty 1), 7 (Qty 4)

2шт.

6

NSS

NOT SOLD SEPARAT

Cross, Incl in 5

2шт.

7

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

8шт.

8

47676531

CONSTRUCTION DIA

Standard Ride Control 2WD, Imcl 1 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

8

47677202

CONSTRUCTION DIA

Auto Ride Control, Standard Transmission, Incl 1 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
