(35.701.BR[06]) - VAR - 423090 - RIDE CONTROL, VALVE, HYDRAULIC LINE. 4WD

Запчасти Case 580N EP (35.701.BR[06]) - VAR - 423090 - RIDE CONTROL, VALVE, HYDRAULIC LINE. 4WD (35) - HYDRAULIC SYSTEMS

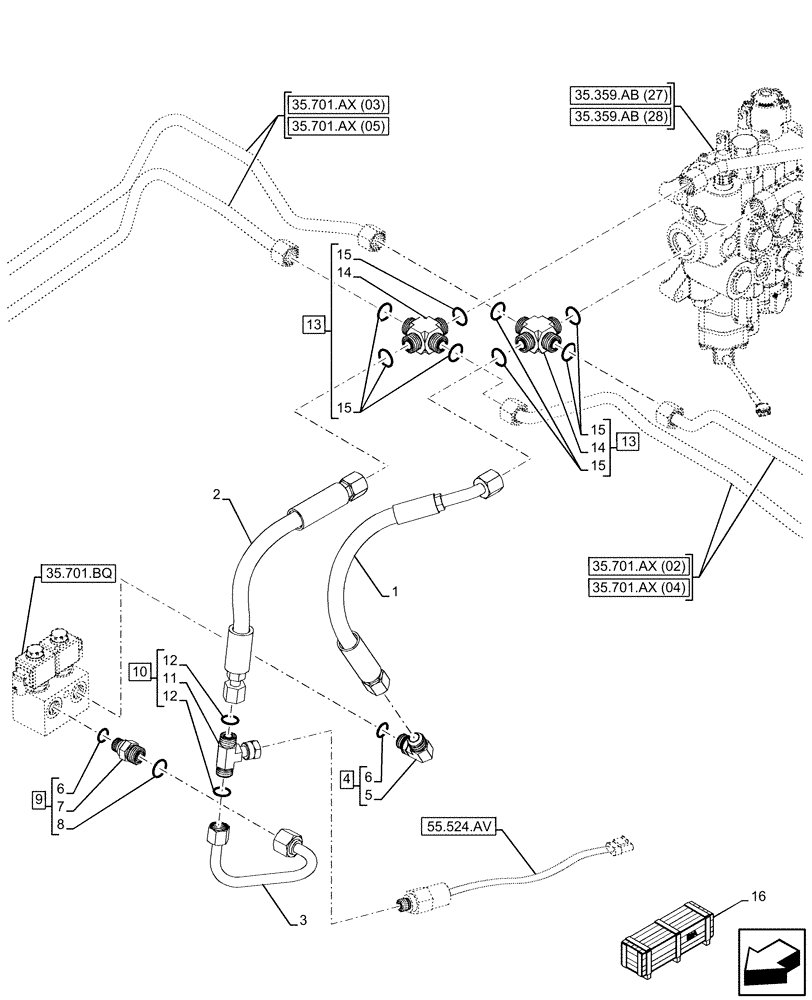

Схема запчастей Case 580N EP - (35.701.BR[06]) - VAR - 423090 - RIDE CONTROL, VALVE, HYDRAULIC LINE. 4WD (35) - HYDRAULIC SYSTEMS
35.701.ax (03)
14
4
6
1
16
10
2
15
6
15
8
3
13
9
11
15
5
14
13
15
12
12
7
55.524.av
35.701.bq
35.701.ax (04)
35.701.ax (02)
35.359.ab (28)
35.359.ab (27)
35.701.ax (05)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47606038

HYDRAULIC HOSE,12.5mm ID x 455mm L

Ride Control P1 and P2

1шт.

2

47606518

HYDRAULIC HOSE,12.5mm ID x 400mm L

Ride Control P1 Port

1шт.

3

84477400

HYD TUBE

Ride Control P1 Port

1шт.

4

86527

90 ELBOW,7/8" - 14 JIC x 3/4" - 16 ORB

ASSY, Incl 5, 6 (Qty 1)

1шт.

5

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 4

1шт.

6

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

7

NSS

NOT SOLD SEPARAT

Connector, Incl in 9

1шт.

8

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

9

87351379

HYD CONNECTOR

ASSY, Incl 6 (Qty 1), 7, 8

1шт.

10

84480441

BRANCH TEE,13/16"-16 ORFS

ASSY, Incl 11, 12

1шт.

11

NSS

NOT SOLD SEPARAT

Tee, Incl in 10

1шт.

12

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

13

86513044

UNION CROSS,7/8" - 14 JIC x 7/8" - 14 JIC x 7/8" - 14 JIC x 7/8" - 14 JIC

ASSY, Incl 14 (Qty 1), 15 (Qty 4)

2шт.

14

NSS

NOT SOLD SEPARAT

Cross, Incl in 13

2шт.

15

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

8шт.

16

47677202

CONSTRUCTION DIA

Auto Ride Control, Standard Transmission, Incl 1 - 3, 9, 10

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
