(35.701.BR[05]) - HYDRAULIC LINE, W/O RIDE CONTROL

Запчасти Case 580N EP (35.701.BR[05]) - HYDRAULIC LINE, W/O RIDE CONTROL (35) - HYDRAULIC SYSTEMS

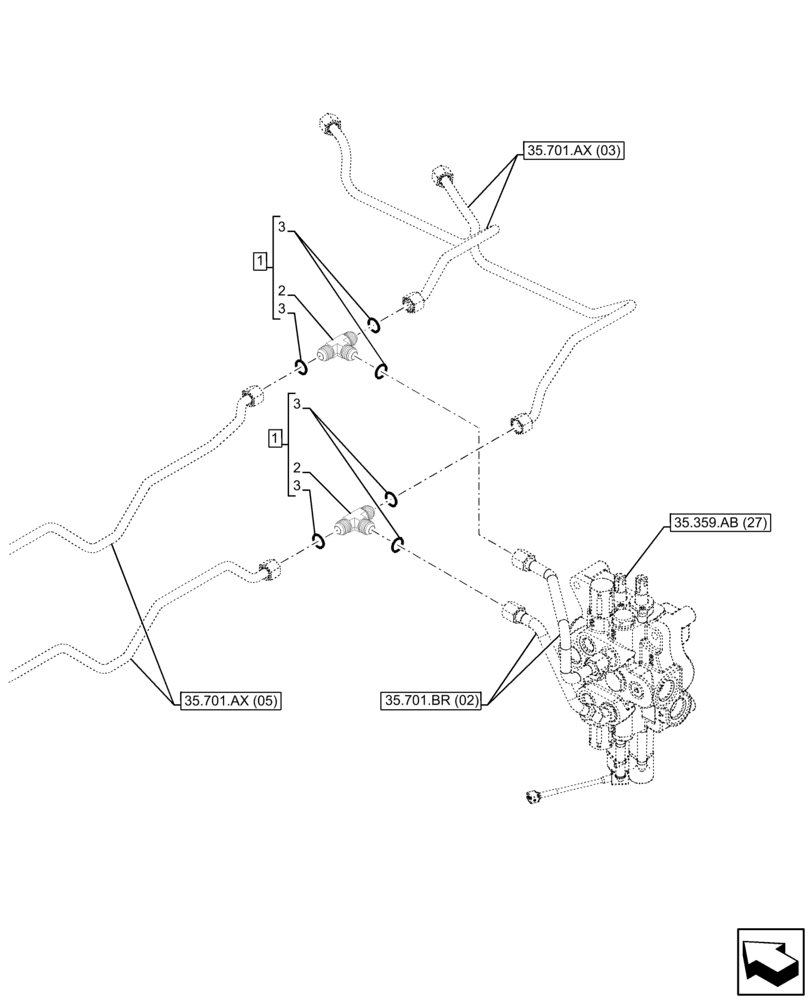

Схема запчастей Case 580N EP - (35.701.BR[05]) - HYDRAULIC LINE, W/O RIDE CONTROL (35) - HYDRAULIC SYSTEMS
2
3
3
3
35.701.ax (03)
3
1
35.359.ab (27)
2
35.701.br (02)
35.701.ax (05)
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84989665

TEE,1"-14 ORFS

ASSY, Incl 2 (Qty 1), 3 (Qty 3)

2шт.

2

NSS

NOT SOLD SEPARAT

Tee, Incl in 1

2шт.

3

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

6шт.
