(35.701.BR[05]) - HYDRAULIC LINE, W/O RIDE CONTROL

Запчасти Case 580N EP (35.701.BR[05]) - HYDRAULIC LINE, W/O RIDE CONTROL (35) - HYDRAULIC SYSTEMS

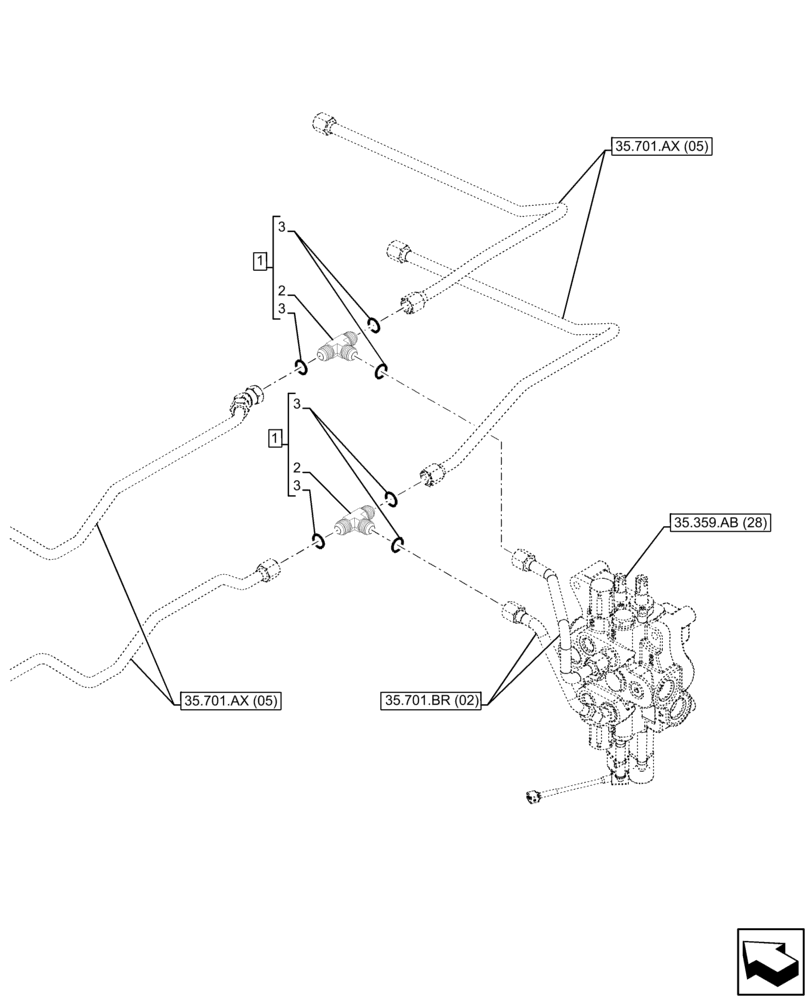

Схема запчастей Case 580N EP - (35.701.BR[05]) - HYDRAULIC LINE, W/O RIDE CONTROL (35) - HYDRAULIC SYSTEMS
2
35.701.ax (05)
2
3
35.701.br (02)
3
35.701.ax (05)
35.359.ab (28)
3
1
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

16985

TEE,7/8"-14, 37 Degree

ASSY, Incl 2 (Qty 1), 3 (Qty 3)

2шт.

2

NSS

NOT SOLD SEPARAT

Tee, Incl in 1

2шт.

3

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

6шт.
