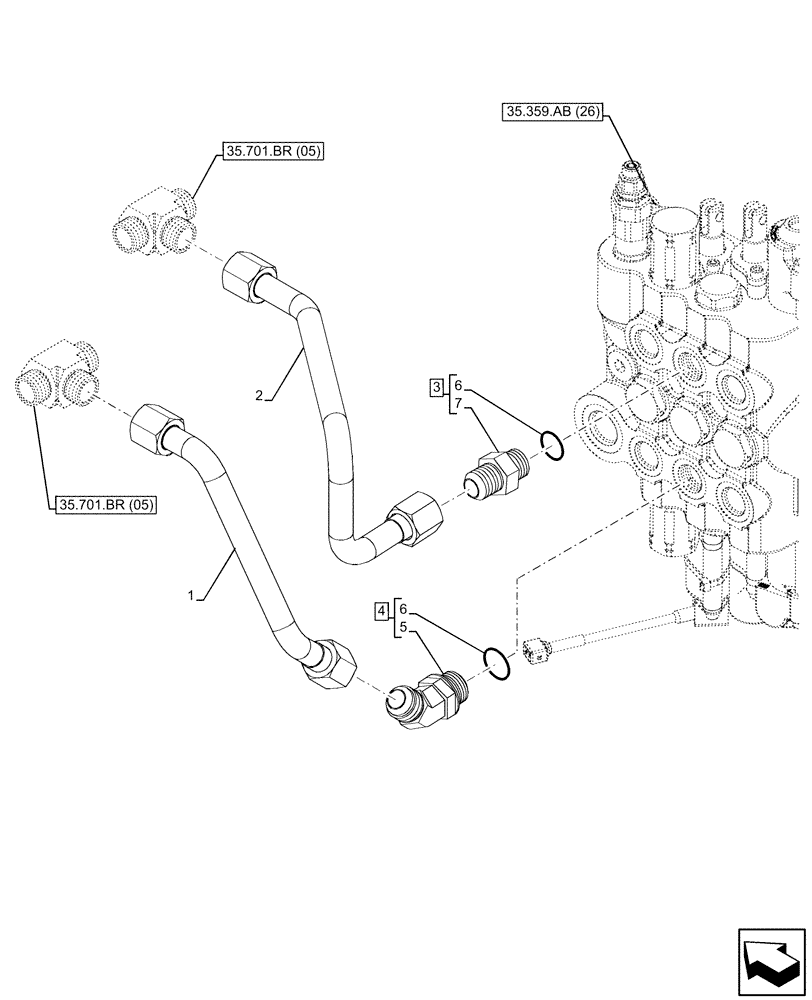

Запчасти Case 580N EP (35.701.BR[01]) - VAR - 747776, 747864 - LOADER, CONTROL VALVE, W/O RIDE CONTROL, LINE (35) - HYDRAULIC SYSTEMS

1

84380643

TUBE

Loader Lift Port B to Loader Cylinder Line

1шт.

2

84380579

TUBE

Loader Lift Port A to Loader Cylinder Line

1шт.

3

87301330

HYD CONNECTOR,7/8" - 14 ORB x 7/8" - 14 JIC

ASSY, Incl 6 (Qty 1), 7

1шт.

4

330345

45 ELBOW,45 Degree, 7/8"-14 x 7/8"-14, O-Ring

ASSY, Incl 5, 6 (Qty 1)

1шт.

5

NSS

NOT SOLD SEPARAT

45° Elbow, Incl in 4

1шт.

6

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

7

NSS

NOT SOLD SEPARAT

Connector, Incl in 3

1шт.
