Запчасти Case 580N EP (35.701.BQ) - VAR - 423090, 423098 - RIDE CONTROL, VALVE (35) - HYDRAULIC SYSTEMS

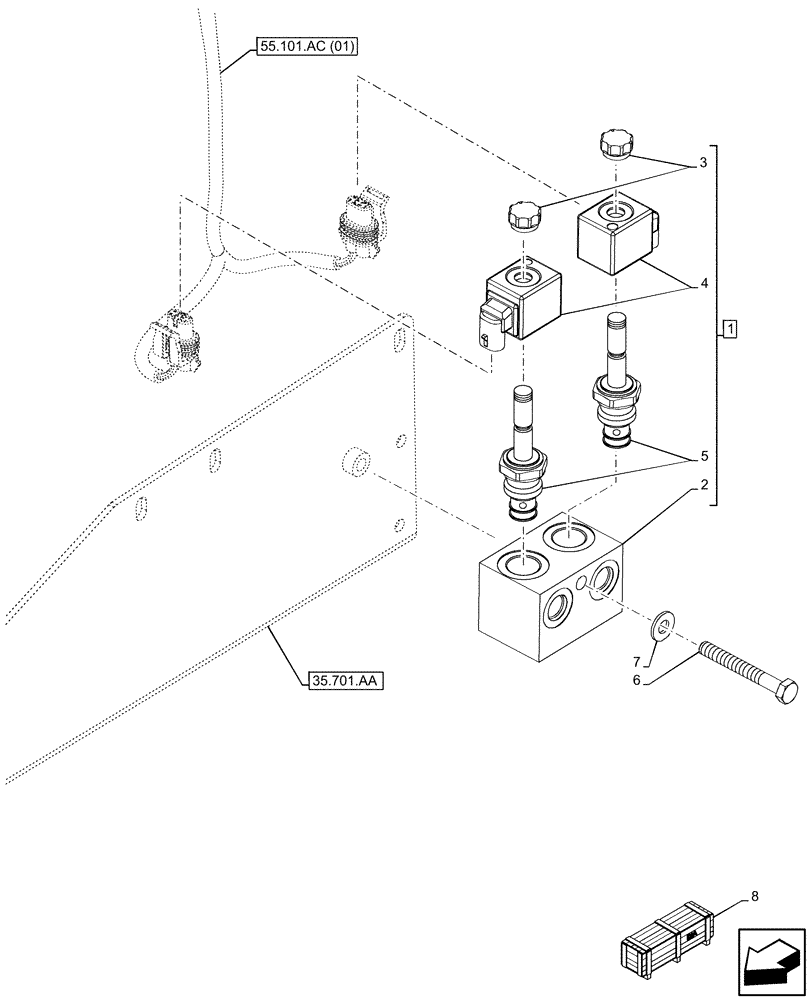

Схема запчастей Case 580N EP - (35.701.BQ) - VAR - 423090, 423098 - RIDE CONTROL, VALVE (35) - HYDRAULIC SYSTEMS
35.701.aa
7
8
6
2
3
4
5
1
55.101.ac (01)

Артикул

Название

Примечание

Количество

1

84348784

SOLENOID VALVE

Ride Control, ASSY, Incl 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

3

9970384

RING NUT

2шт.

4

84478803

COIL

2шт.

5

84519540

SOLENOID VALVE

2шт.

6

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

1шт.

7

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

1шт.

8

47676531

CONSTRUCTION DIA

Standard Ride Control 2WD, Incl 1 - 7

1шт.

Valid for 580N EP Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

8

47727593

CONSTRUCTION DIA

Ride Control 2WD, Incl 1 - 7

1шт.

Valid for 580N, 580SN, 580SN WT, 590SN Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

8

47677202

CONSTRUCTION DIA

Auto Ride Control, Standard Transmission, Incl 1 - 7

1шт.

Valid for 580N EP Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

8

47728597

CONSTRUCTION DIA

Auto Ride Control, Standard Transmission, Incl 1 - 7

1шт.

Valid for 580N, 580SN, 580SN WT, 590SN Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

8

47730254

CONSTRUCTION DIA

Auto Ride Control, Standard Transmission, Incl 1 - 7

1шт.

Valid for 580N, 580SN, 580SN WT, 590SN Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 22
