Запчасти Case 580N EP (35.701.AX[04]) - LOADER, CYLINDER, LINE (35) - HYDRAULIC SYSTEMS

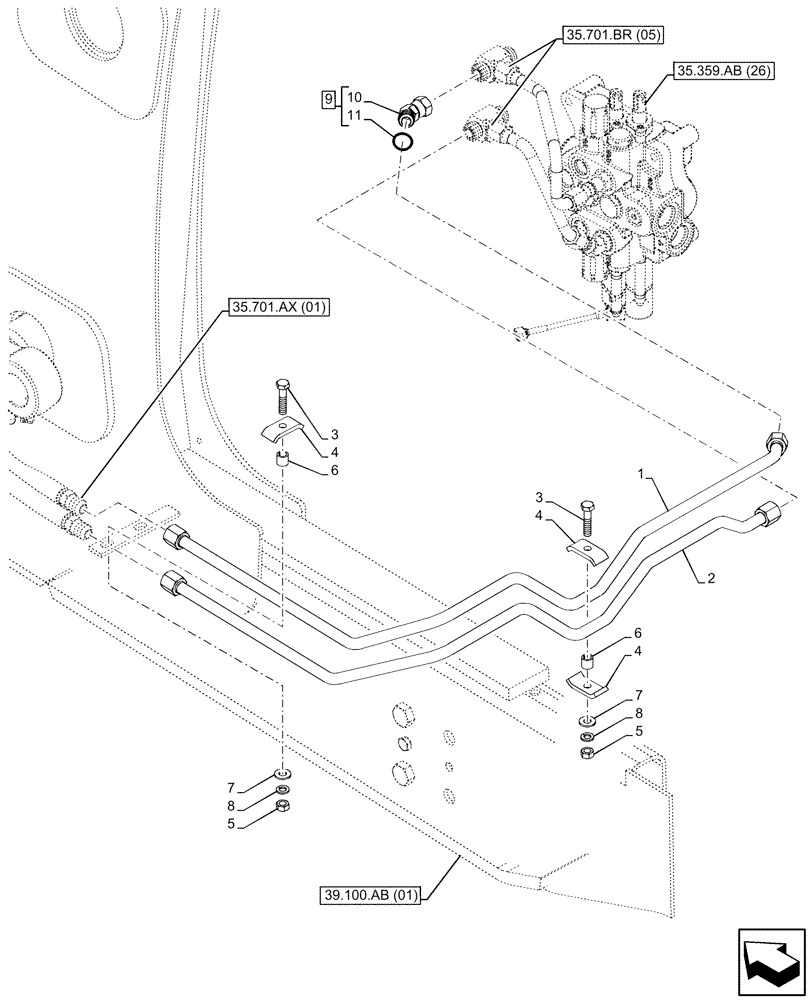

Схема запчастей Case 580N EP - (35.701.AX[04]) - LOADER, CYLINDER, LINE (35) - HYDRAULIC SYSTEMS
35.701.ax (01)
10
4
35.359.ab (26)
8
8
4
4
7
6
9
11
3
1
5
6
2
35.701.br (05)
39.100.ab (01)
3
5
7

Артикул

Название

Примечание

Количество

1

47609509

HYD TUBE

LH Lift Port A

1шт.

2

47609529

HYD TUBE

LH Lift Port B

1шт.

3

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

2шт.

4

D138055

CLAMP

3шт.

5

86500689

NUT,M10 x 1.5, Cl 10

2шт.

6

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

2шт.

7

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

8

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

2шт.

9

86512960

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

ASSY, Incl 10, 11

1шт.

10

NSS

NOT SOLD SEPARAT

45° Elbow, Incl in 9

1шт.

11

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Выбрано товаров: 11
