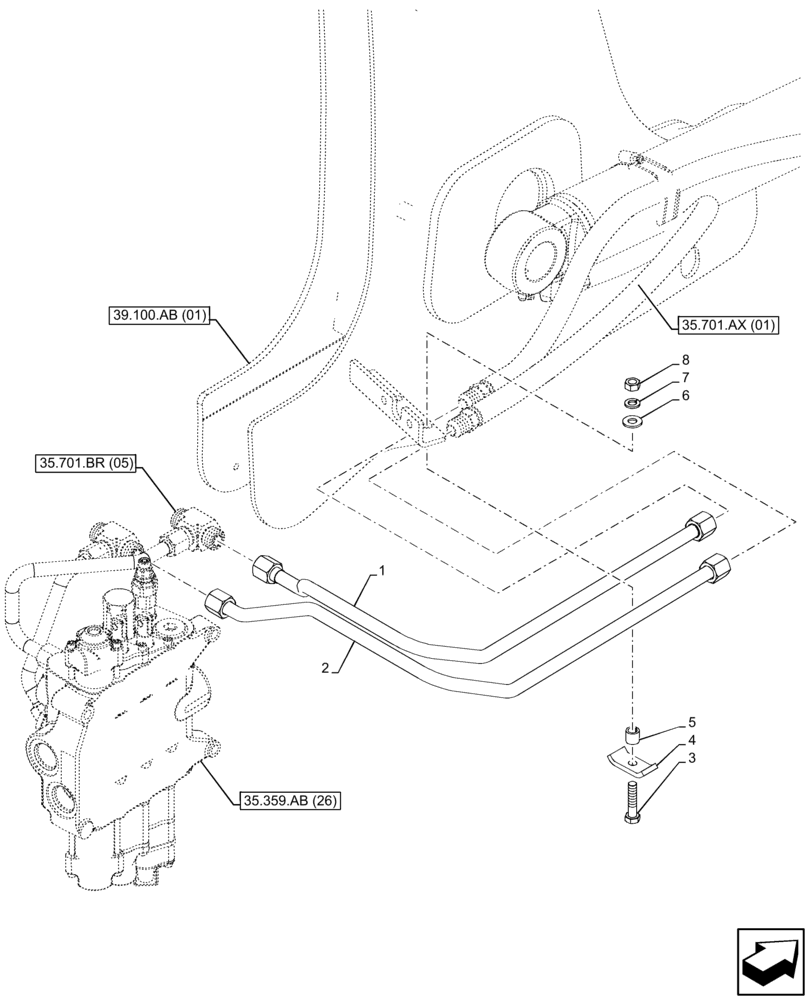

Запчасти Case 580N EP (35.701.AX[03]) - VAR - 747776, 747864 - LOADER, CYLINDER, LINE (35) - HYDRAULIC SYSTEMS

1

47609491

HYD TUBE

RH Lift Port A

1шт.

2

47609487

HYD TUBE

RH Lift Port B

1шт.

3

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

1шт.

4

D138055

CLAMP

1шт.

5

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

1шт.

6

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

1шт.

7

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

1шт.

8

86500689

NUT,M10 x 1.5, Cl 10

1шт.
