Запчасти Case 580N EP (35.701.AX[02]) - VAR - 747776, 747864 - LOADER, CYLINDER, LINE (35) - HYDRAULIC SYSTEMS

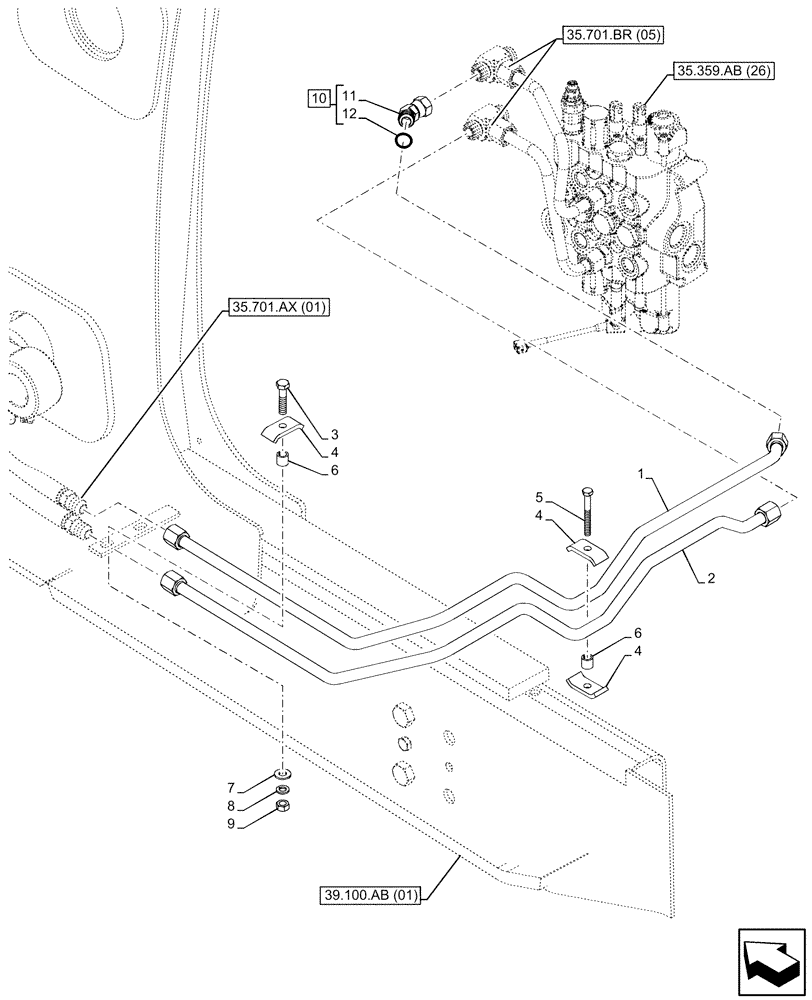

Схема запчастей Case 580N EP - (35.701.AX[02]) - VAR - 747776, 747864 - LOADER, CYLINDER, LINE (35) - HYDRAULIC SYSTEMS
4
6
9
35.359.ab (26)
35.701.br (05)
4
12
35.701.ax (01)
6
39.100.ab (01)
7
2
10
8
11
4
1
3
5

Артикул

Название

Примечание

Количество

1

47609509

HYD TUBE

LH Lift Port A

1шт.

2

47609529

HYD TUBE

LH Lift Port B

1шт.

3

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

1шт.

4

D138055

CLAMP

3шт.

5

120062

BOLT,Hex, M8 x 70mm, Cl 8.8

1шт.

6

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

2шт.

7

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

1шт.

8

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

1шт.

9

86500689

NUT,M10 x 1.5, Cl 10

1шт.

10

86512960

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

ASSY, Incl 11, 12

1шт.

11

NSS

NOT SOLD SEPARAT

45° Elbow, Incl in 10

1шт.

12

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Выбрано товаров: 12
