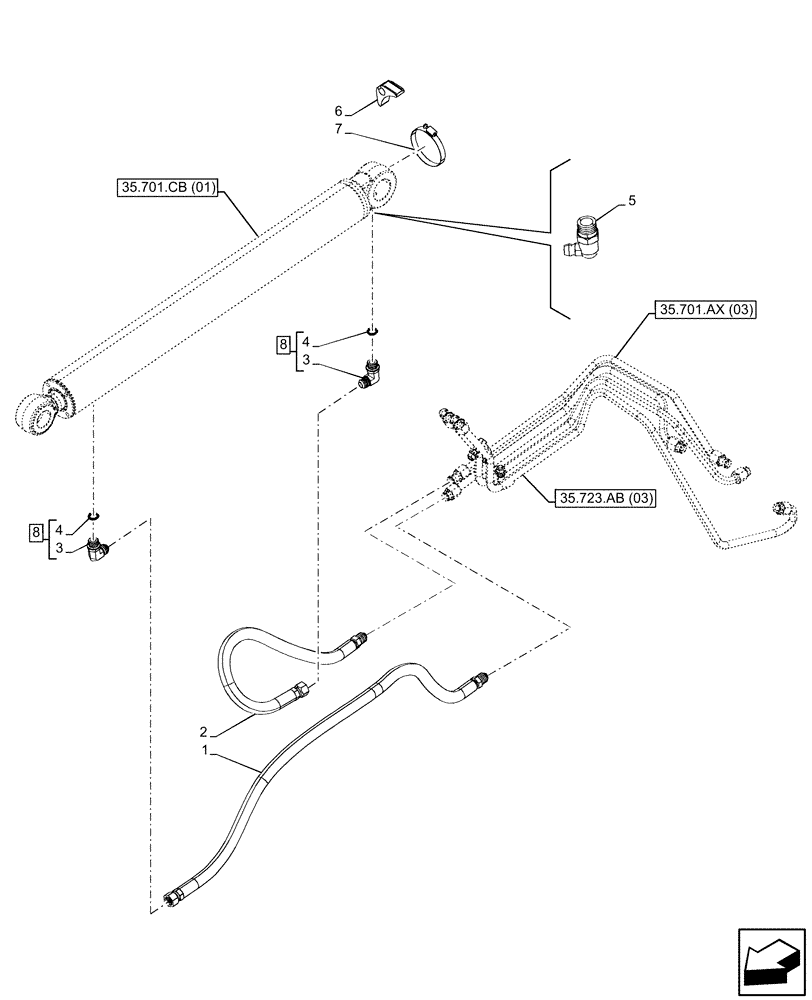

Запчасти Case 580N EP (35.701.AX[01]) - LOADER, CYLINDER, LINES (35) - HYDRAULIC SYSTEMS

1

87443149

HYDRAULIC HOSE,7/8" - 14 JIC, 1130mm L

Lift Cylinder Rod End

2шт.

2

87443150

HYDRAULIC HOSE,7/8" - 14 JIC, 740mm L

Lift Cylinder Head End

2шт.

3

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 8

2шт.

4

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

5

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

2шт.

6

86625034

HOSE CLAMP,90.4mm - 114.3mm, Worm Gear

2шт.

7

D142787

SPACER

2шт.

8

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

ASSY, Incl 3 (Qty 1), 4 (Qty 1)

2шт.
